Pitch 8.70mm 250V 15A 2 × 2 – 14 × 2P Barrier Terminal Blocks Power Terminal Blocks

Name: Pitch 870mm 250V 15A 2 2 14 2P Barrier Terminal Blocks Power Terminal Blocks
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE,CQC

Model Number : TB870-00

MOQ : 500

Price : Get latest price

Packaging Details : Get latest price

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : T/T

Contact Now

Pitch 8.70mm 250V 15A 2 × 2 – 14 × 2P Barrier Terminal Blocks Power Terminal Blocks

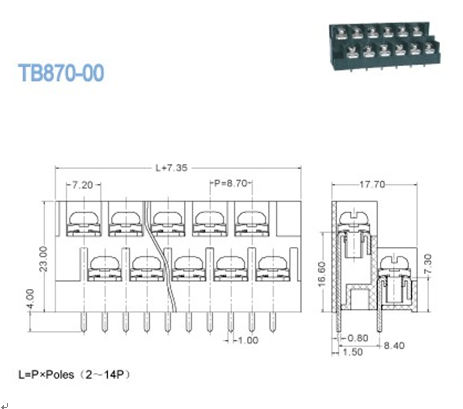

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	250 / 15		250 / 10
Wire Range AWG	14-26		14-26
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	320 / 24	400 / 24	630 / 24
Rated Surge Voltage KV	5	5	5
Rated Connecting Capacity mm²	2.5
Material
Insulation Material / Inflammability Class	PBT / UL94, V-0
Terminal / Plating	Brass /Tin Plated
Screw / Plating	Steel / Nickel Plated
Other Data
PCB Hole Diameter mm	φ1.6
Stripping Length mm	7-8
Screw / Torque / lbf.in	M 3.5 / 7-10

Pitch 8.70mm 250V 15A 2 × 2 – 14 × 2P Barrier Terminal Blocks Power Terminal Blocks

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

Pitch 8.70mm 250V 15A 2 × 2 – 14 × 2P Barrier Terminal Blocks Power Terminal Blocks

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
