Pitch 8.20mm Barrier Type Terminal Block Customize ODM Project China Supplier
Details:
Pitch: 8.20mm
Poles: 27pin
Current: 10A
Voltage: 300V
Spec.
1. Multiple Pitch: 7.62mm,8.25mm,8.70mm,9.525mm,10.00mm,11.00mm,
13.00mm,13.50mm,14.50mm,20.00mm,21.00mm
2. With or without cover, one or two rows, from one level to three levels, etc.
3. Materials: Plastic housing is PBT(UL94 V-0)
4. Operating temperature: -40℃~+120℃
5. Clamp cage and terminal is high quality brass or copper screw is high-quality steel

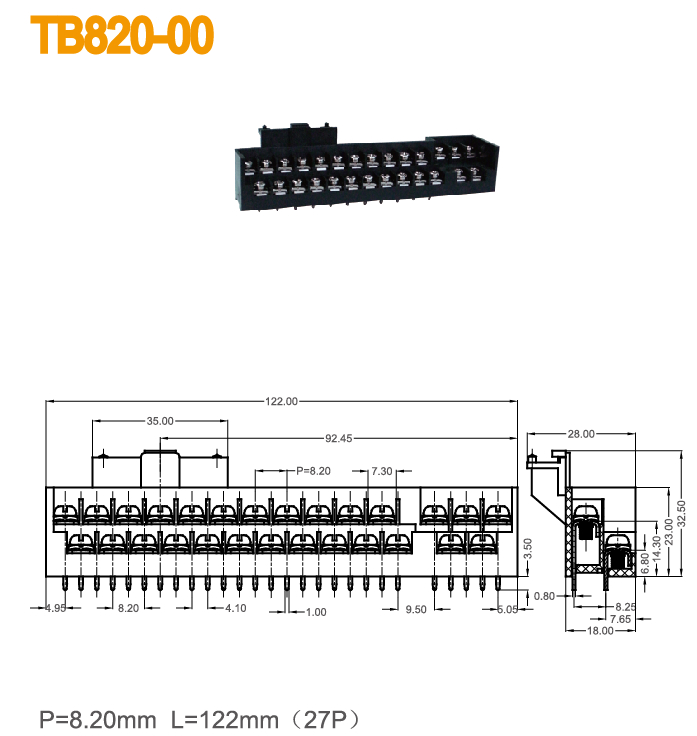

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 300/10 | | 300/10 |
| Wire Range AWG | 14-22 | | 14-22 |
| IEC Technical Data | |
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 320 / 24 | 320 / 24 | 400 / 24 |
| Rated Surge Voltage KV | 4 | 4 | 4 |
| Rated Connecting Capacity mm2 | 2.5 |
| Material | |
| Insulation Material / Inflammability Class | PBT / UL94, V-0 |
| Terminal / Plating | Brass / Tin Plated |
| Screw / Plating | Steel / Nickel Plated |
| Other Data | |
| PCB Hole Diameter mm | φ1.6 |
| Stripping Length mm | 6-7 |
| Screw / Torque / lbf.in | M 3 / 5-7 |
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch,
Power Supply, Electric Lighting, Industry Control, Automation,
Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:
- Stable good quality
- Competitive price
- Quickly response
- Full range products for selection
- Flexible to design the exact part per customers’ demand
