20A Barrier Terminal Block Pitch 11mm Plastic PA66 Brass Two Levels

Name: 20A Barrier Terminal Block Pitch 11mm Plastic PA66 Brass Two Levels
Brand: SCED
Price: 0.153 USD

Brand Name : SCED

Model Number : TB1100-02

Certification : CE，UL，CUL，VDE，CQC etc.

Place of Origin : Guangdong,China

MOQ : 500 Piece/Pieces

Price : USD 0.153-0.203

Payment Terms : T/T, L/C

Supply Ability : 1000000 Pole/Poles per Month

Packaging Details : Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198

Delivery Time : 5-20 days

Material : Brass

Current : 30A

Voltage : 300V

Type : Barrier

Available Poles : 2-22 poles

Inflammability Class : UL94, V-0

Contact Resistance : Less than 8mΩ

Rated Surge Voltage : No abnormal within 1 minute

Pitch : 11.00 mm

Insulation Resistance : Above DC500V, 500MΩ

Contact Now

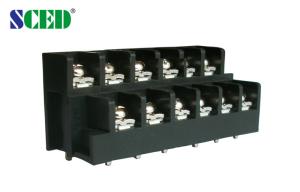

20A Barrier Terminal Block 300V Pitch 11mm Plastic PA66 Brass Two Levels

Detailed product Description:

Pitch 11.00mm, 300V 30A, 4*2P-16*2P, Barrier Terminal blocks, power terminal blocks

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

□Single Level; ■Double levels; □Triple levels

Standard color: Black. Other colors also available.

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

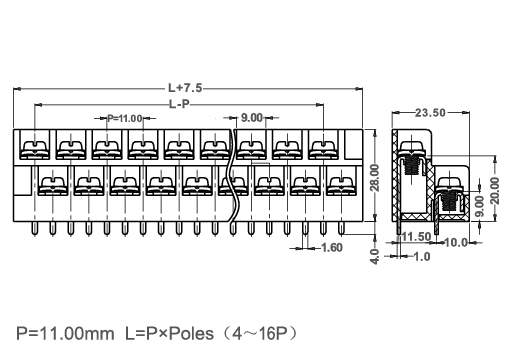

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300 / 30		300 / 10
Wire Range AWG	12-24		12-24
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	630 / 32	800 / 32	1000 / 32
Rated Surge Voltage KV	6	6	6
Rated Connecting Capacity mm²	4
Material
Insulation Material / Inflammability Class	PBT / UL94, V-0
Terminal / Plating	Brass /Tin Plated
Screw / Plating	Steel / Nickel Plated
Other Data
PCB Hole Diameter mm	φ2.3
Stripping Length mm	9-10
Screw / Torque / lbf.in	M 4 / 10-13

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
