PBT Barrier Terminal Block 6.35mm Pitch 300V 15A Brass UL94 V0

Name: PBT Barrier Terminal Block 635mm Pitch 300V 15A Brass UL94 V0
Brand: SCED
Price: 0.035 USD

China PBT Barrier Terminal Block 6.35mm Pitch 300V 15A Brass UL94 V0 wholesale

Brand Name : SCED

Model Number : TB762-16

Certification : UL,CE,CUL,CQC,VDE etc.

Place of Origin : Guangdong China

MOQ : 500 Piece/Pieces

Price : USD 0.035-0.068 Per Pole

Payment Terms : T/T, L/C

Supply Ability : 1000000 Pole/Poles per Month

Delivery Time : 5-20 days

Packaging Details : Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198

Plastic : PBT

Color : Black

Type : Barrier

Current : 15A

Volt : 300V

Pitch : 6.35mm

Poles : 2-24 poles

Inflammability : UL94 V0

Terminal : Brass

Screw : Steel

Contact Now

PBT Barrier Terminal Block 6.35mm Pitch 300V 15A Brass UL94 V0

Detailed product Description:

Pitch 7.62mm, 300V 15A, 2P-24P, Barrier Terminal Blocks, Power Terminal Blocks

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Level; □Double levels; □Triple levels

Standard color: Black. Other colors also available.

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

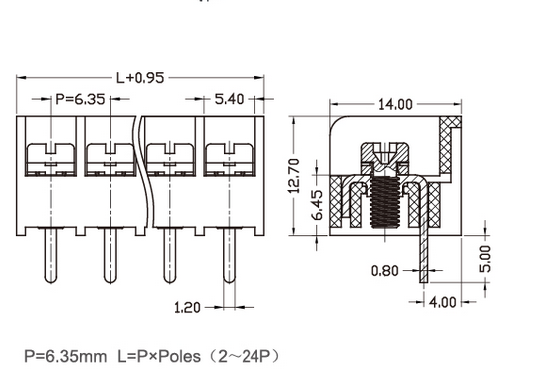

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300/15		300/10
Wire Range AWG	18-22		18-22
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	250 / 9	320 / 9	630 / 9
Rated Surge Voltage KV	4	4	4
Rated Connecting Capacity mm²	0.75
Material
Insulation Material / Inflammability Class	PBT / UL94, V-0
Terminal / Plating	Brass / Tin Plated
Screw / Plating	Steel / Nickel Plated
Other Data
PCB Hole Diameter mm	φ1.9
Stripping Length mm	7-8
Screw / Torque / lbf.in	M 3 / 5-7

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
