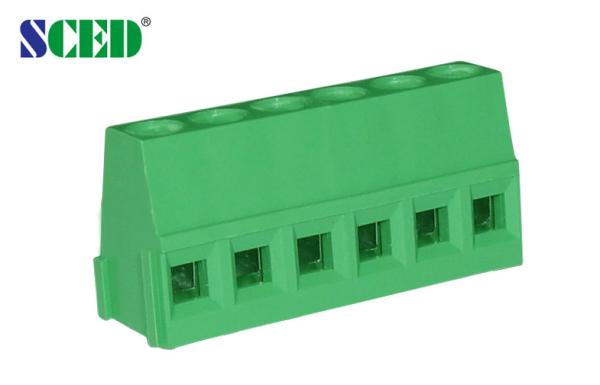

5.0mm 300V 10A Raising Cage Vertical Wire Inlet PA66 Housing

Name: 50mm 300V 10A Raising Cage Vertical Wire Inlet PA66 Housing
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TJ500-00-D1

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Contact Now

5.0mm 300V 10A Raising Cage Vertical Wire Inlet PA66 Housing

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300/10		300/10
Wire Range AWG	12-26		12-26
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	250 / 10	400 / 10	630 / 10
Rated Surge Voltage KV	4	4	4
Rated Connecting Capacity mm²	2.5
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Clamp Cage / Plating	Brass / Nickel Plated
Terminal / Plating	Brass / Tin Plated
Screw / Plating	Steel / Zinc Plated
Other Data
PCB Hole Diameter mm	φ1.4
Stripping Length mm	6-7
Screw / Torque / lbf.in	M3 / 4.4-5.3

5.0mm 300V 10A Raising Cage Vertical Wire Inlet PA66 Housing

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

5.0mm 300V 10A Raising Cage Vertical Wire Inlet PA66 Housing

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand

5.0mm 300V 10A Raising Cage Vertical Wire Inlet PA66 Housing
