2P - 24P Screw PCB Terminal Block Pitch 6.20mm 300V 10A For Module Design

Name: 2P 24P Screw PCB Terminal Block Pitch 620mm 300V 10A For Module Design
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TJ508-15-D10

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Contact Now

2P - 24P Screw PCB Terminal Block Pitch 6.20mm 300V 10A For Module Design

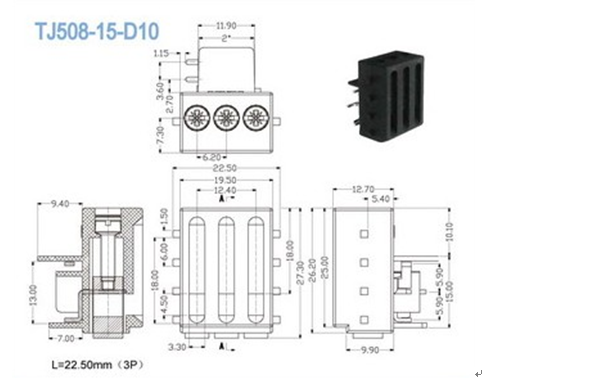

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300/15
Wire Range AWG	10-24
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	630 / 15	800 / 15	1000 / 15
Rated Surge Voltage KV	6	6	8
Rated Connecting Capacity mm²	4.0
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Clamp Cage / Plating	Brass / Nickel Plated
Terminal / Plating	Brass / Tin Plated
Screw / Plating	Steel / Nickel Plated
Other Data
PCB Hole Diameter mm	φ1.4
Stripping Length mm	7-8
Screw / Torque / lbf.in	M3 / 4.4-5.3

2P - 24P Screw PCB Terminal Block Pitch 6.20mm 300V 10A For Module Design

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

2P - 24P Screw PCB Terminal Block Pitch 6.20mm 300V 10A For Module Design

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand

2P - 24P Screw PCB Terminal Block Pitch 6.20mm 300V 10A For Module Design
