2.54mm PCB Terminal Block Brass Green Right Angle Wire Inlet

Name: 254mm PCB Terminal Block Brass Green Right Angle Wire Inlet
Brand: SCED
Price: 0.01 USD

China 2.54mm PCB Terminal Block Brass Green Right Angle Wire Inlet wholesale

Brand Name : SCED

Model Number : TJ254-02

Certification : CE,UL,CUL,CQC,VDE etc.

Place of Origin : China

MOQ : 500 pcs

Price : USD 0.01-0.2 per pole

Payment Terms : T/T

Supply Ability : 1KK poles each month

Delivery Time : 7-20 working days

Packaging Details : Normally, one master carton packs 16 inner boxes inside. Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.

Terminal Material : Brass

Plating : Nickel plated

Wire Range : 16-30 AWG

Color : Green

Screw : Steel

PCB Hole Diameter : φ1.1mm

Insulation Material : PA66

Poles : 2p-22p

Pitch : 2.54mm

Wire Inlet : Right angle

Contact Now

2.54mm PCB Terminal Block Green Green Right Angle Wire Inlet

Detailed product Description:

Pitch 2.54mm, 125V 6A, 2P-22P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Deck; □Double decks; □Triple decks

Standard color: Green. Other colors also available.

Applications:

Such as: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

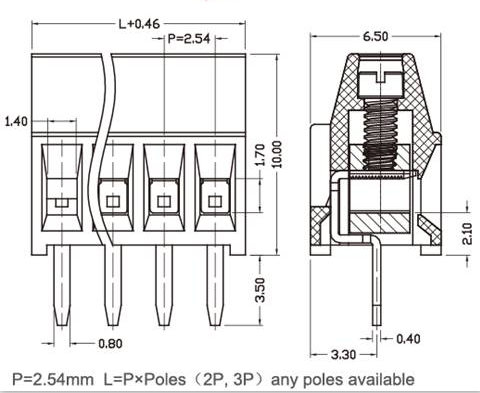

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	125 / 6
Wire Range AWG	16-30
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	63 / 6	160 / 6	320 / 6
Rated Surge Voltage KV	1.5	1.5	2.5
Rated Connecting Capacity mm²	0.5
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Clamp Cage / Plating	Brass / Nickel Plated
Terminal / Plating	Brass / Tin Plated
Screw / Plating	Steel / Nickel Plated
Other Data
PCB Hole Diameter mm	φ1.1
Stripping Length mm	4-5
Screw / Torque / lbf.in	M1.6 / 1.0-1.3

Competitive Advantage:

Stable good quality
Competitive price
Quickly response and good after-sales service
Full range products for selection
Flexible to design the exact part per customers’ demand
