Female Sockets Pluggable Terminal Blocks for Electric Power , Pitch 3.81mm, 300V 8A

Name: Female Sockets Pluggable Terminal Blocks for Electric Power Pitch 381mm 300V 8A
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TP381P-00

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Type : Plug In Terminal Blocks,Pluggable Terminal Blocks, Plug-in Terminal Blocks

Pitch : 3.81mm

Number Of Contacts : 2P-22P

Wire Range : 16-30

Rated Voltage : 300V

Rated Current : 8A

Color : Green

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Contact Now

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..

How to order:
Female Sockets Pluggable Terminal Blocks for Electric Power , Pitch 3.81mm, 300V 8A

Female Sockets Pluggable Terminal Blocks for Electric Power , Pitch 3.81mm, 300V 8A, 2P-22P Plug-in Terminal Blocks

■Single Level; □Double Levels; □Triple Levels

This female plug match with male sockets’ series: TP381H-00, TP381H-00V, TP381H-01, TP381H-01V, TP381H-02, TP381P-05

Standard color: Green. Other colors also available, please refer to below How to Order and select the color
you want.
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors

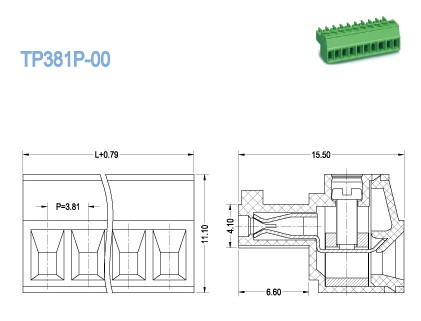

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300 / 8
Wire Range AWG	16-30
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	160 / 8	160 / 8	320 / 8
Rated Surge Voltage KV	2.5	2.5	2.5
Rated Connecting Capacity mm²	1.5
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Clamp Cage / Plating	Brass /Nickel Plated
Terminal / Plating	Phosphor Bronze / Tin Plated
Screw / Plating	Steel / Zinc Plated
Other Data
Stripping Length mm	7
Screw / Torque / lbf.in	M2 / 2-2.2

Female Sockets Pluggable Terminal Blocks for Electric Power , Pitch 3.81mm, 300V 8A

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
