300V 10A Header Male Sockets / Pitch 3.81mm , 5P Sockets Plug-in Terminal Block

Name: 300V 10A Header Male Sockets Pitch 381mm 5P Sockets Plugin Terminal Block
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TP381H-04

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Contact Now

300V 10A Header Male Sockets / Pitch 3.81mm , 5P Sockets Plug-in Terminal Block

■Single Level; □Double Levels; □Triple Levels

This part is design for modular housing, for further information, please contact us and we will response you very quickly.

300V 10A Header Male Sockets / Pitch 3.81mm , 5P Sockets Plug-in Terminal Block

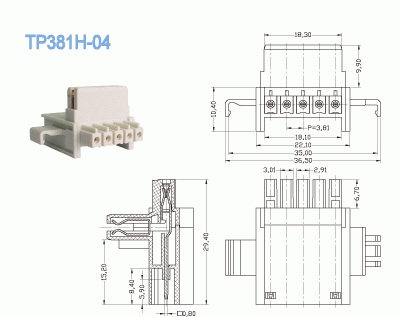

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	150/10
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	160 / 10	160 / 10	320 / 10
Rated Surge Voltage KV	2.5	2.5	2.5
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Terminal / Plating	Phosphor Bronze / Tin Plated
Other Data
Pin Dimension mm	0.8 x 0.8

300V 10A Header Male Sockets / Pitch 3.81mm , 5P Sockets Plug-in Terminal Block

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
