2P - 24P Socket Plug In Terminal Block Pitch 3.81mm 300V 8A for PCB

Name: 2P 24P Socket Plug In Terminal Block Pitch 381mm 300V 8A for PCB
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TP381H-07V

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Contact Now

2P - 24P Socket Plug In Terminal Block Pitch 3.81mm 300V 8A for PCB

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Deck; □Double decks; □Triple decks

2P - 24P Socket Plug In Terminal Block Pitch 3.81mm 300V 8A for PCB

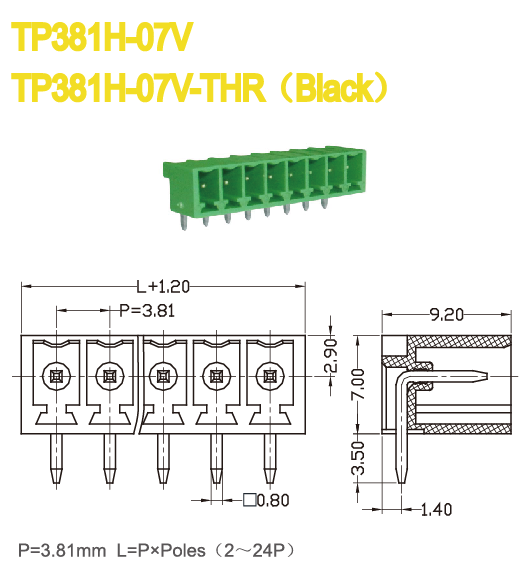

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300/8
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	160 / 8	160 / 8	320 / 8
Rated Surge Voltage KV	2.5	2.5	2.5
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Terminal / Plating	Brass / Tin Plated
Other Data
PCB Hole Diameter mm	φ1.2
Pin Dimension mm	0.8 x 0.8

2P - 24P Socket Plug In Terminal Block Pitch 3.81mm 300V 8A for PCB

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
