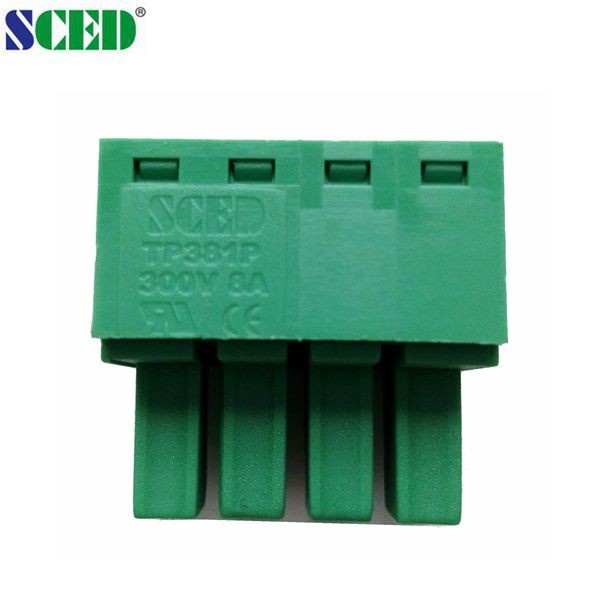

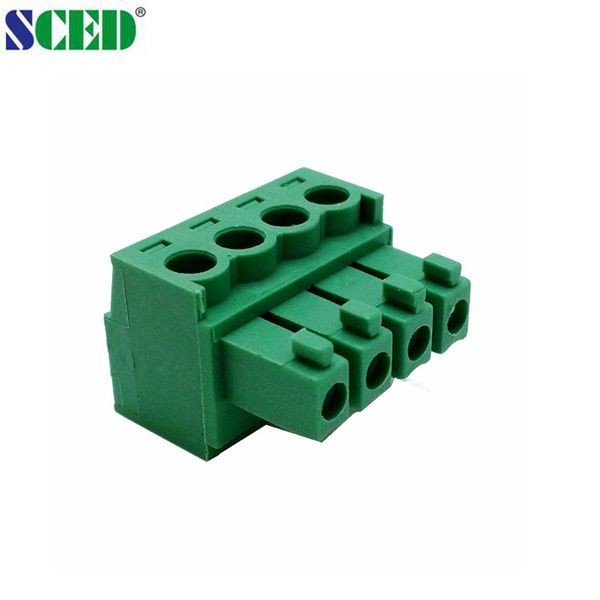

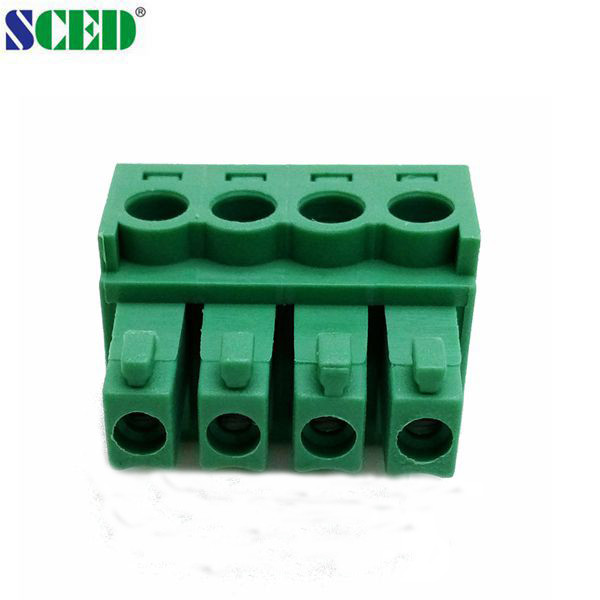

300V 8A PCB Plug In Terminal Block 3.81mm Pitch Pluggable Terminal Block

Name: 300V 8A PCB Plug In Terminal Block 381mm Pitch Pluggable Terminal Block
Brand: SCED
Price: 1 USD

China 300V 8A PCB Plug In Terminal Block 3.81mm Pitch Pluggable Terminal Block wholesale

Brand Name : SCED

Model Number : TP381P-00

Certification : UL, CE

Place of Origin : Shenzhen, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 7-20 working days

Packaging Details : Standard Export Carton

Imflammability : UL94, V-0

Housing Material : PA66

Pitch : 3.81mm

Current : 8A

Screw : Steel

Contactor : Phosphor Bronze

Contact Now

300V 8A PCB Plug In Terminal Block 3.81mm Pitch Pluggable Terminal Block

Descripition:

1. Material: Plastic housing is PA66(UL94 V-0),

2. Operating temperature: -40 ℃~+105℃,

3. Clamp cage and header terminal using brass

4. Spring clamp with phophor bronze

5. Screw using high quality steel

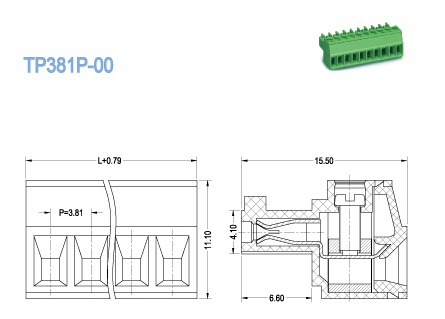

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300 / 8
Wire Range AWG	16-30
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	160 / 8	160 / 8	320 / 8
Rated Surge Voltage KV	2.5	2.5	2.5
Rated Connecting Capacity mm²	1.5
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Clamp Cage / Plating	Brass / Nickel Plated
Terminal / Plating	Phosphor Bronze / Tin Plated
Screw / Plating	Steel / Zinc Plated
Other Data
Stripping Length mm	7
Screw / Torque / lbf.in	M2 / 2-2.2

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
