Flange Female Plug In Terminal Block Screw Terminal Block Pitch 3.81mm for Communication

Name: Flange Female Plug In Terminal Block Screw Terminal Block Pitch 381mm for Communication
Brand: SCED
Price: 1 USD

Brand Name : SCED

Model Number : TP381P-00F

Certification : UL, CE

Place of Origin : Shenzhen, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 7-20 working days

Packaging Details : Standard Export Carton

Current : 8A

Imflammability : UL 94, V-0

Pitch : 3.81mm

Poles : 2-20 Poles

Voltage : 300V

Color : Green, other color available

Wire Range : 16-30 AWG

Clamp Cage : Brass

Contact Now

Flange Female Screw Terminal Block Pitch 3.81mm 300v for Communication

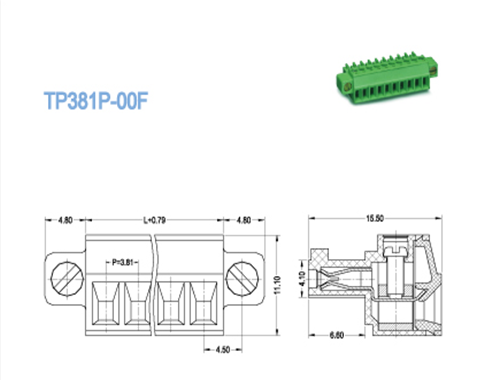

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300/8
Wire Range AWG	16-30
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	160 / 8	160 / 8	320 / 8
Rated Surge Voltage KV	2.5	2.5	2.5
Rated Connecting Capacity mm2	1.5
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Clamp Cage / Plating	Brass / Nickel Plated
Contactor / Plating	Phosphor Bronze / Tin Plated
Screw / Plating	Steel / Zinc Plated
Other Data
Stripping Length mm	7
Screw / Torque / lbf.in	M2 / 2-2.2

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Flange Female Plug In Terminal Block Screw Terminal Block Pitch 3.81mm for Communication

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
