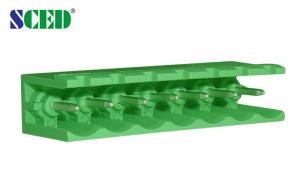

18A Power Distribution Terminal Block 300V Pitch 5.08mm Male Parts PA66

Name: 18A Power Distribution Terminal Block 300V Pitch 508mm Male Parts PA66
Brand: SCED
Price: 0.016 USD

China 18A Power Distribution Terminal Block 300V Pitch 5.08mm Male Parts PA66 wholesale

Brand Name : SCED

Model Number : TP508H-01V

Certification : CE, UL, CUL, CQC, VDE etc.

Place of Origin : Guangdong, China

MOQ : 500 Piece/Pieces

Price : USD 0.016-0.032 Per Pole

Payment Terms : T/T, L/C

Supply Ability : 1000000 Pole/Poles per Month

Delivery Time : 5-20 days

Packaging Details : Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.

Color : Green

Pitch : 5.08mm

Poles : 2-22 poles

Voltage : 300V

Current : 18A

Plastic : PA66

Imflammability : UL94 V0

Terminal : Brass

Contamination Class : 4

Plating : Tin plated

Contact Now

18A Plug In Terminal Block 300V Pitch 5.08mm Male Parts PA66

Detailed product Description:

Header, Male Sockets, Pitch: 5.08mm, 300V 18A, 2-22P, Pluggable Terminal Blocks, Plug-in Terminal Blocks

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Level; □Double Levels; □Triple Levels

This male header match with female plugs’ series: TP508P-00, TP508P-02, TP508P-03, TP508P-04, TP508P-05, TP508P-07

Standard color: Green. Other colors also available.

Applications:

1.PCB, Frequency Converters, Server Site, Switch, Power Supply

2.Electric Lighting, Industry Control, Automation, Rail Transportation

3.Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300/18		300/18
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	250 / 18	400 / 18	500 / 18
Rated Surge Voltage KV	4	4	4
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Terminal / Plating	Brass / Tin Plated
Other Data
PCB Hole Diameter mm	φ1.4
Pin Dimension mm	1.0 x 1.0

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
OEM and ODM service
