5.08mm Male Female Plug In Terminal Block 300V 8A 2P - 24P For Servo Drive

Name: 508mm Male Female Plug In Terminal Block 300V 8A 2P 24P For Servo Drive
Brand: SCED
Price: 1 USD

China 5.08mm Male Female Plug In Terminal Block 300V 8A 2P - 24P For Servo Drive wholesale

Brand Name : SCED

Model Number : TP508P-08

Certification : UL, CE

Place of Origin : Shenzhen, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 7-20 working days

Packaging Details : Standard Export Carton

Pitch : 5.08mm

Material : PA66

Color : Black

Poles : 2-24 poles

Rated Voltage : 300V

Rated Current : 18A

Contact Now

5.08mm Male Female Plug In Terminal Block 300V 18A 2P - 24P For Servo Drive

Single Level; □Double Levels; □Triple Levels

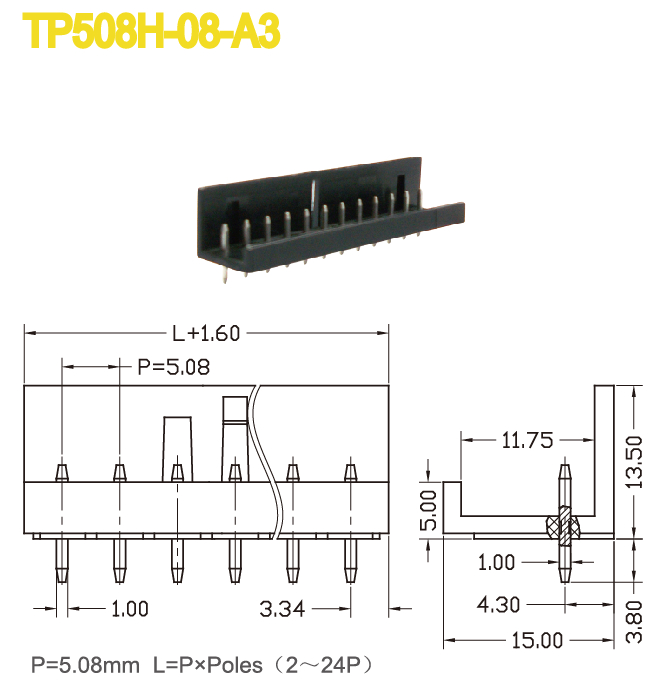

This female plug match with male sockets’ series: TP508H-08

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300/18		300/18
Wire Range AWG	12-30		12-30
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	250 / 18	320 / 18	630 / 18
Rated Surge Voltage KV	4	4	4
Rated Connecting Capacity mm2	2.5
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Clamp Cage / Plating	Brass / Nickel Plated
Contactor / Plating	Phosphor Bronze / Tin Plated
Screw / Plating	Steel / Zinc Plated
Other Data
Stripping Length mm	7
Screw / Torque / lbf.in	M3 / 4.4-5.3

5.08mm Male Female Plug In Terminal Block 300V 8A 2P - 24P For Servo Drive

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

Competitive Advantage:

Stable good quality

Competitive price

Quickly response

Full range products for selection

Flexible to design the exact part per customers’ demand

Applications:

servo drive, security communication, energy conservation, etc.

Tag:

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors

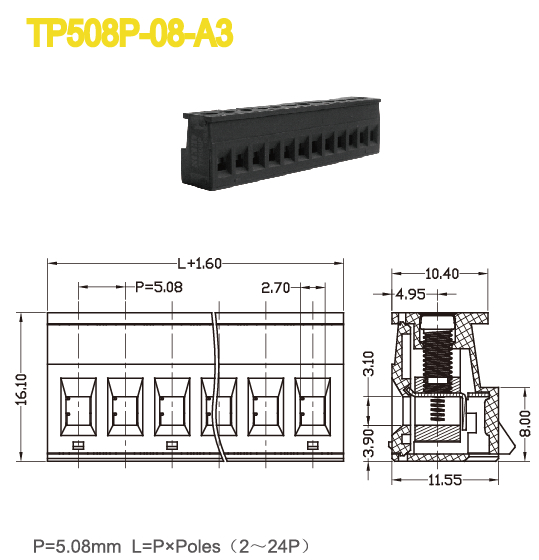

Drawing Photo:

5.08mm Male Female Plug In Terminal Block 300V 8A 2P - 24P For Servo Drive
