5.08mm Female Connector 300V Plug In Terminal Block Green Connector

Name: 508mm Female Connector 300V Plug In Terminal Block Green Connector
Brand: SCED
Price: 1 USD

China 5.08mm Female Connector 300V Plug In Terminal Block Green Connector wholesale

Brand Name : SCED

Model Number : TP508H-10V-D8

Certification : UL, CE

Place of Origin : Shenzhen, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 7-20 working days

Packaging Details : Standard Export Carton

Type : PCB Type

Color : Green

Item : Plug in type, male type

material : PA66

Pitch : 5.08mm

Poles : 2-22 poles

Contact Now

5.08mm Female Connector 300V Plug In Type Terminal Block Green Connector

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Level; □Double Levels; □Triple Levels

This male header match with female plugs’ series: TP508H-00, TP508H-00V, TP508H-01, TP508H-01V, TP508H-04, TP508H-05, TP508H-06, TP508H-06V, TP508H-07, TP508H-07V, TP508P-06

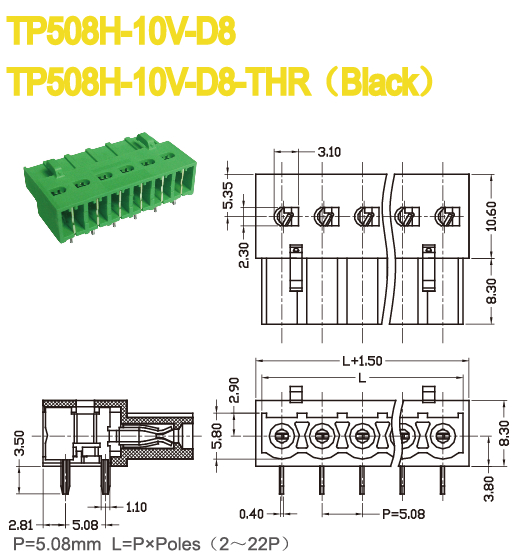

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300/18		300/10
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	250 / 18	400 / 18	500 / 18
Rated Surge Voltage KV	4	4	4
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Terminal / Plating	Copper / Tin Plated
Other Data
PCB Hole Diameter mm	φ1.5
Pin Dimension mm	0.4 x 1.1

5.08mm Female Connector 300V Plug In Terminal Block Green Connector

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Tag:

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors
