Brass Spring Terminal Block One Level 3.5mm Pitch PA66 UL94-V0

Name: Brass Spring Terminal Block One Level 35mm Pitch PA66 UL94V0
Brand: SCED
Price: 1 USD

China Brass Spring Terminal Block One Level 3.5mm Pitch PA66 UL94-V0 wholesale

Brand Name : SCED

Model Number : TJ381-04

Certification : CE,UL,CUL,CQC, VDE etc.

Place of Origin : Guangdong China

MOQ : 1000 Pc/Pcs

Price : US $ 0.07 - 0.11 / Pole

Payment Terms : L/C, T/T

Supply Ability : 1000000 Pole/Poles per Month

Delivery Time : 5-20 days

Packaging Details : Standard Master Carton Dimension: 341 x 273 x 198mm.

Clamp Cage : Brass

Pitch : 3.81mm

Current : 16A

Terminal : Copper

Volt : 300 V

Rated Surge Voltage : No abnormal within 1 minute

Plastic Housing : UL94, V-0

Insulation Resistance : Above DC500V, 500MΩ

Contact Resistance : Less than 8mΩ

Stripping Length : 5-6mm

Contact Now

Brass Spring Terminal Block One Level 3.5mm Pitch PA66 UL94-V0

Detailed product Description:

Pitch 3.81mm, 300V 16A, 2P-28P, Spring Terminal blocks, Screwless terminals

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Deck; □Double decks; □Triple decks

Standard color: Grey. Other colors also available.

Applications:

1.PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting

2.Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

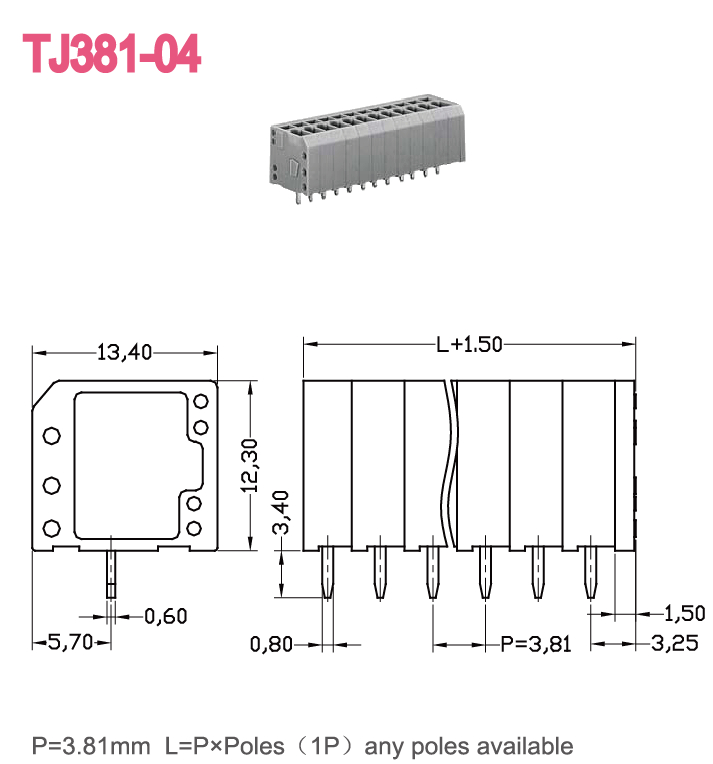

Parameter and Drawing Specifications:

PCB Spring Terminal Block UL Technical Data	B	C	D
Rated Voltage / Current V/A	300/5
Wire Range AWG	16-22
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	320 / 5	400 / 5	630 / 5
Rated Surge Voltage KV	4	4	2.5
Rated Connecting Capacity mm2	1.5
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Spring / Plating
Terminal / Plating	Phosphor Bronze / Tin Plated
Other Data
PCB Hole Diameter mm	φ1.2
Stripping Length mm	8-9

Brass Spring Terminal Block One Level 3.5mm Pitch PA66 UL94-V0

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
Good after-sales service
