Communication Pluggable Terminal Block Vertical Inlet Pitch 3.81mm 300V 8A 2P-20P

Name: Communication Pluggable Terminal Block Vertical Inlet Pitch 381mm 300V 8A 2P20P
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TP381H-00VF

MOQ : 500

Price : Get latest price

Packaging Details : Get latest price

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Contact Now

Communication Pluggable Terminal Block Vertical Inlet Pitch 3.81mm 300V 8A 2P-20P

Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Level; □Double Levels; □Triple Levels

Communication Pluggable Terminal Block Vertical Inlet Pitch 3.81mm 300V 8A 2P-20P

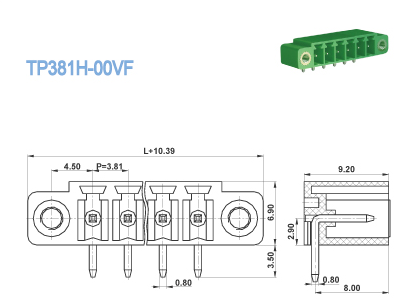

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300/8
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	160 / 8	160 / 8	320 / 8
Rated Surge Voltage KV	2.5	2.5	2.5
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Terminal / Plating	Brass / Tin Plated
Other Data
PCB Hole Diameter mm	φ1.2
Pin Dimension mm	0.8 x 0.8

Communication Pluggable Terminal Block Vertical Inlet Pitch 3.81mm 300V 8A 2P-20P

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Communication Pluggable Terminal Block Vertical Inlet Pitch 3.81mm 300V 8A 2P-20P
