Pitch 7.62mm Pluggable Terminal Block Brass Green Female Parts With Flange

Name: Pitch 762mm Pluggable Terminal Block Brass Green Female Parts With Flange
Brand: SCED
Price: 0.04 USD

China Pitch 7.62mm Pluggable Terminal Block Brass Green Female Parts With Flange wholesale

Brand Name : SCED

Model Number : TP508P-76F

Certification : UL,CE

Place of Origin : Guangdong,China

MOQ : 500 Piece/Pieces

Price : USD 0.04-0.088 PER Pole

Payment Terms : L/C, T/T

Supply Ability : 1000000 Pole/Poles per Month

Delivery Time : 5-20 working days

Packaging Details : Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.

Pitch : 7.62mm

Color : Green

Type : Female Parts

Current : 18A

Voltage : 300V

Plastic : PA66

Metal Parts : Brass

Rated Surge Voltage : No abnormal within 1 minute

Inflammability Class : UL94, V-0

Insulation Resistance : Above DC500V, 500MΩ

Contact Now

Pitch 7.62mm Pluggable Terminal Block Brass Green Female Parts With Flange

Detailed product Description:

Plug, Female, Pitch: 7.62mm, 300V 18A, 2P-14P, Pluggable Terminal Blocks, Plug-in Terminal Blocks

■Single Level; □Double Levels; □Triple Levels

This female plug match with male sockets’ series: TP508H-76F, TP508H-76VF

Standard color: Green. Other colors also available.

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

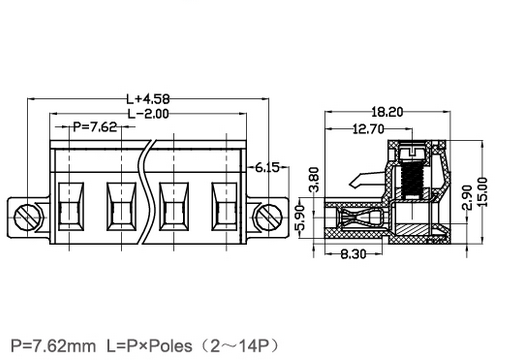

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300/18		300/18
Wire Range AWG	12-30		12-30
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	400 / 18	630 / 18	1000 / 18
Rated Surge Voltage KV	6	6	6
Rated Connecting Capacity mm²	2.5
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Clamp Cage / Plating	Brass / Nickel Plated
Contactor / Plating	Brass / Tin Plated
Screw / Plating	Steel / Zinc Plated
Other Data
Stripping Length mm	7
Screw / Torque / lbf.in	M3 / 4.4-5.3

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
