Pitch 5.08mm Screw Type Terminal Block Green Plastic 300V 10A 5.08mm Pitch

Name: Pitch 508mm Screw Type Terminal Block Green Plastic 300V 10A 508mm Pitch
Brand: SCED
Price: 0.034 USD

Brand Name : SCED

Model Number : TJ508-07V

Certification : CE,UL,CUL,CQC,VDE etc.

Place of Origin : Guangdong China

MOQ : 500 Piece/Pieces

Price : USD 0.034-0.068 Per Pole

Payment Terms : T/T, L/C

Supply Ability : 1000000 Pole/Poles per Month

Delivery Time : 5-20 days

Packaging Details : Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.

Color : Green

Pitch : 5.08mm

Voltage : 300V

Current : 10A

Poles : Any poles available

Plastic : PA66

Terminal : Brass

Inflammability Class : UL94, V-0

Insulation Resistance : Above DC500V, 500MΩ

Contact Resistance : Less than 8mΩ

Contact Now

Pitch 5.08mm PCB Screw Terminal Block Green Plastic PA66 Brass

Detailed product Description:

Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series

□Right angle wire inlet; ■Vertical wire inlet; □45 degree wire inlet

■Single Deck; □Double decks; □Triple decks

Standard color: Green. Other colors also available.

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

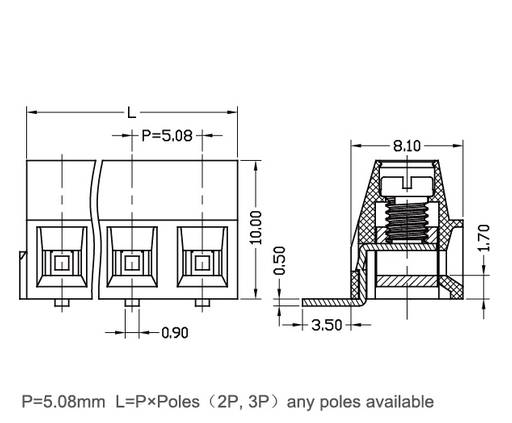

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300/10		300/10
Wire Range AWG	12-26		12-26
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	250 / 10	400 / 10	630 / 10
Rated Surge Voltage KV	4	4	4
Rated Connecting Capacity mm²	1.5
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Clamp Cage / Plating	Brass / Nickel Plated
Terminal / Plating	Brass / Tin Plated
Screw / Plating	Steel / Zinc Plated
Other Data
PCB Hole Diameter mm	φ1.3
Stripping Length mm	6-7
Screw / Torque / lbf.in	M3 / 4.4-5.3

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
