600V 240A PCB Mount Terminal Block Connector , Power Terminal Blocks 36.00mm Pitch

Name: 600V 240A PCB Mount Terminal Block Connector Power Terminal Blocks 3600mm Pitch
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TR240-00-FaM0

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Type : Rail Mounted Terminal Blocks,Barrier terminal blocks, Power terminal blocks

Pitch : 36.00mm

Wire Range : 4-250kcmil

Rated Voltage : 600V

Rated Current : 240A

Color : Black

Applications : Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev

Wire Inlet : Right angle wire inlet

Contact Now

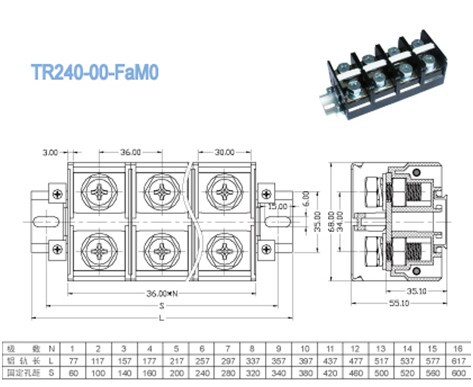

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	600 / 240	600 / 240
Wire Range AWG	4-250kcmil	4-250kcmil
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	1000 /240	1000 / 240	1000 / 240
Rated Surge Voltage KV	8	8	8
Rated Connecting Capacity mm²	125
Material
Insulation Material / Inflammability Class	PC / UL94, V-0
Conduction Board/ Plating	Brass /Nickel Plated
Screw / Plating	Steel / Zinc Plated
Other Data
Stripping Length mm	18-20
Screw Torque mm	M 10 / 50-60

Detailed product Description:

600V 240A PCB Mount Terminal Block Connector , Power Terminal Blocks 36.00mm Pitch
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal block connectors

How to order:
600V 240A PCB Mount Terminal Block Connector , Power Terminal Blocks 36.00mm Pitch

Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

600V 240A PCB Mount Terminal Block Connector , Power Terminal Blocks 36.00mm Pitch

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
