47.00mm High Current Rail Mounted Terminal Blocks 600V 300A for Frequency Converters

Name: 4700mm High Current Rail Mounted Terminal Blocks 600V 300A for Frequency Converters
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TR300-02-FaM0

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Type : Rail Mounted Terminal Blocks,Barrier terminal blocks, Power terminal blocks

Pitch : 47.00mm

Wire Range : 4-350Kcmil

Rated Voltage : 600V

Rated Current : 300A

Color : Black

Applications : Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev

Wire Inlet : Right angle wire inlet

Contact Now

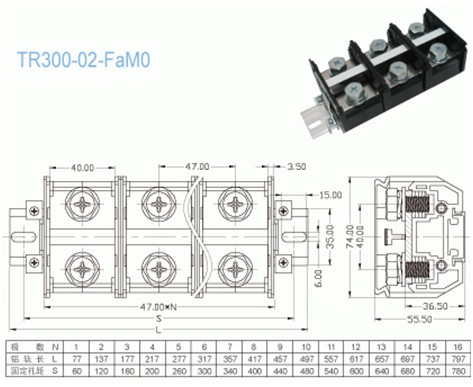

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	600 / 300	600 / 300
Wire Range AWG	4-350Kcmil	4-350Kcmil
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	800 /300	1000 / 300	1000 / 300
Rated Surge Voltage KV	8	8	8
Rated Connecting Capacity mm²	150
Material
Insulation Material / Inflammability Class	PC / UL94, V-0
Conduction Board/ Plating	Brass /Nickel Plated
Screw / Plating	Steel / Zinc Plated
Other Data
Stripping Length mm	19-21
Screw Torque mm	M10 /50-60

Detailed product Description:
47.00mm High Current Rail Mounted Terminal Blocks 600V 300A for Frequency Converters, any pole available
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal block connectors

How to order:
47.00mm High Current Rail Mounted Terminal Blocks 600V 300A for Frequency Converters

Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

47.00mm High Current Rail Mounted Terminal Blocks 600V 300A for Frequency Converters

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
