40A Terminal Block Accessories Brass Metal Parts Terminal Pin 5.0mm*8.0mm

SCED ELECTRONICS CO., LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

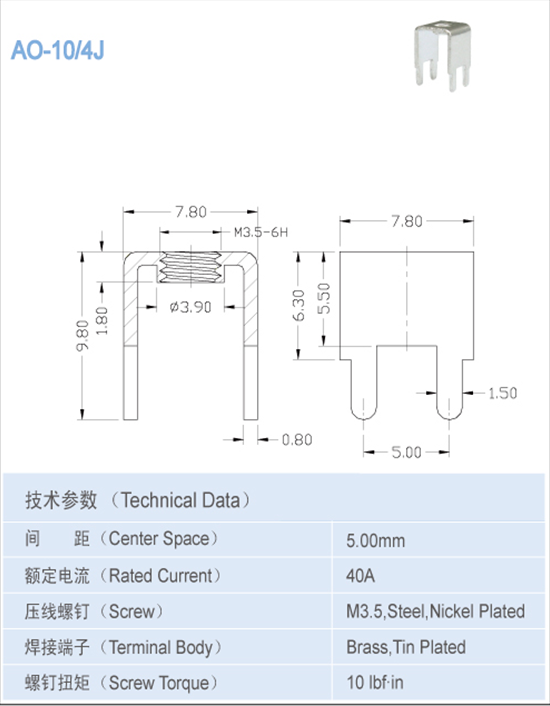

40A Terminal Block Accessories Brass Metal Parts Terminal Pin 5.0mm*8.0mm

Brand Name : SCED

Model Number : AO-10/4J

Certification : CE,UL,CUL,CQC etc.

Place of Origin : China

MOQ : 1000 Piece/Pieces

Price : USD 0.026-0.052 PER PC

Payment Terms : T/T, L/C

Supply Ability : 1000000 Pole/Poles per Month

Delivery Time : 5-20 Working Days

Packaging Details : Packaging Details: Standard export packing carton, or according to customers demand

Rated Current : 40A

Center Space : 5.0*7.0mm

Screw : M3.5

Screw Material : Steel

Screw Plating : Nickel Plated

Terminal Body : Brass

Screw Torque : 10 lbf.in

Contact Resistance : Less than 8mΩ

Insulation Resistance : Above DC500V, 500MΩ

Contact Now

40A Terminal Block Accessories Brass Metal Parts Terminal Pin 5.0mm*8.0mm

Detailed product Description:

Terminal Accessories, PCB terminal, Electrical components

Metal terminal connect accessories can be worked as a terminal block after mount on PCB, some simple metal part components will works as the jumper and other assistant functions. The materials are high-quality brass, copper, and plated tin, nickel, zinc, etc.

Applications:

Our products will be used in lots of fields and industries, such as PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator and so on.

Competitive Advantage:

  1. Flexible to design the exact part per customers’ demand
  2. More than 1000 models for selection
  3. High quality and competitive price
  4. Good service

40A Terminal Block Accessories Brass Metal Parts Terminal Pin 5.0mm*8.0mm
