High Current Electrical Terminals Connectors 100A 10.0mm*16.5mm Space Electrical Components

Name: High Current Electrical Terminals Connectors 100A 100mm165mm Space Electrical Components
Brand: SCED
Price: 0.165 USD

China High Current Electrical Terminals Connectors 100A 10.0mm*16.5mm Space Electrical Components wholesale

Brand Name : SCED

Model Number : AO-15/4J-N5

Certification : UL,CE

Place of Origin : Guangdong,China

MOQ : 1000 Piece/Pieces

Price : USD 0.165-0.321 PER PC

Payment Terms : T/T, L/C

Supply Ability : 10000000 Pole/Poles per Month

Delivery Time : 5-20 Working Days

Packaging Details : Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198m

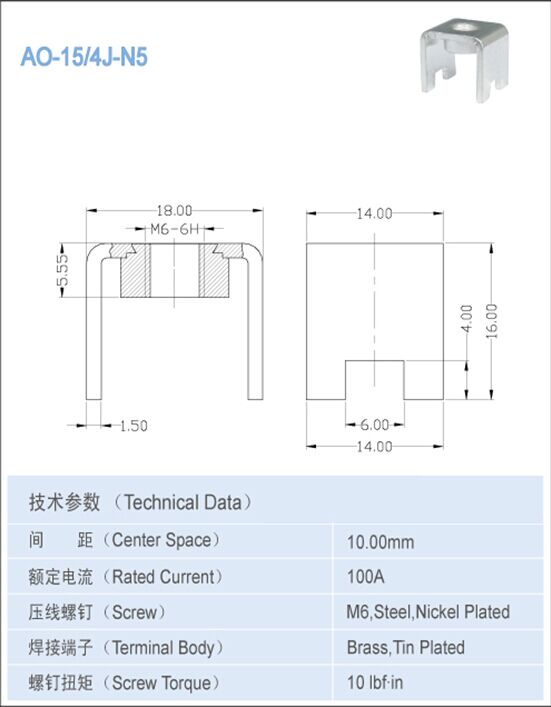

Center Space : 10.0*16.5mm

Rated Current : 100A

Screw : M6

Screw Torque : 18 lbf.in

Terminal Body : Brass

Terminal Body Plating : Tin plated

Screw Material : Steel

Screw Plating : Nickel plated

Contact Now

High Current Terminal Block Accessories 100A 10.0mm*16.5mm Space Electrical Components

Detailed product Description:

Terminal Accessories, PCB terminal, Electrical components

Metal terminal connect accessories can be worked as a terminal block after mount on PCB, some simple metal part components will works as the jumper and other assistant functions. The materials are high-quality brass, copper, and plated tin, nickel, zinc, etc.

Applications:

Our products can be used in lots of fields and industries, such as: PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand.

High Current Electrical Terminals Connectors 100A 10.0mm*16.5mm Space Electrical Components
