45 Degree Wire Inlet Spring Type Terminal Block Pitch 3.50mm 300V 2P - 28P

Name: 45 Degree Wire Inlet Spring Type Terminal Block Pitch 350mm 300V 2P 28P
Brand: SCED
Price: 0.034 USD

China 45 Degree Wire Inlet Spring Type Terminal Block Pitch 3.50mm 300V 2P - 28P wholesale

Brand Name : SCED

Model Number : TJ381-15

Certification : CE,UL,CUL,CQC,VDE etc.

Place of Origin : Guangdong China

MOQ : 500 Piece/Pieces

Price : USD 0.034-0.068 Per Pole

Payment Terms : L/C, T/T

Supply Ability : 1000000 Pole/Poles per Month

Delivery Time : 5-20 days

Packaging Details : Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.

Type : Spring Type

Color : Grey and blue

Pitch : 3.5mm

Current : 10A

Voltage : 300V

Plastic : PA66

Terminal : Brass

Plating : Nickel plated

Rated Surge Voltage : No abnormal within 1 minute

Insulation Resistance : Above DC500V, 500MΩ

Contact Now

45 Degree Wire Inlet Spring Type Terminal Block Pitch 3.50mm 300v 2P - 28P

Detailed product Description:

Pitch 3.50mm, 300V 10A, 2P-28P, Spring Terminal blocks, screwless terminal blocks

□Right angle wire inlet; □Vertical wire inlet; ■45 degree wire inlet

■Single Deck; □Double decks; □Triple decks

Standard color: Grey.

Other colors also available, such as Blue, Yellow, Black, Grey and White and so on.

Applications:

Our terminal blocks can be used in a lot of fileds, such as:

1. PCB, Frequency Converters, Server Site, Switch, Power Supply Electric Lighting

2. Industry Control, Automation, Rail Transportation, Communication, Electric Power

3. Security, Medicine Equipment, Military, Elevator and so on.

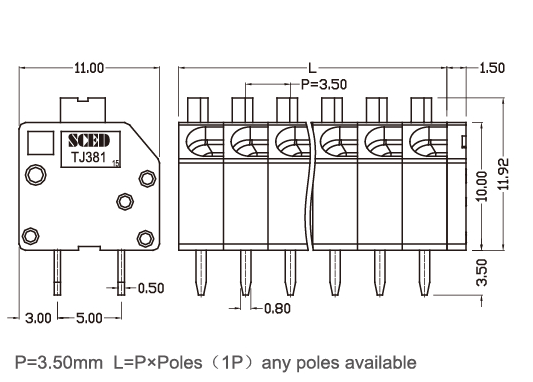

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300/10		300/10
Wire Range AWG	14-26(sol) 16-26(str)		14-26(sol) 16-26(str)
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	125 / 10	250 / 10	320 / 10
Rated Surge Voltage KV	2.5	2.5	2.5
Rated Connecting Capacity mm²	1.5
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Spring / Plating	Stainless Steel / -
Terminal / Plating	Brass / Tin Plated
Other Data
PCB Hole Diameter mm	φ1.2
Stripping Length mm	8-9

Competitive Advantage:

1. Flexible to design the exact part per customers' demand

2. Stable good quality with competitive price

3. Quick response

4. more than 1000 models for selection.

45 Degree Wire Inlet Spring Type Terminal Block Pitch 3.50mm 300V 2P - 28P

Product Tags:

300V Spring Type Terminal Block

Pitch 3.50mm Spring Type Terminal Block

28P Spring Terminal Block

45 Degree Wire Inlet Spring Type Terminal Block Pitch 3.50mm 300V 2P - 28P Images
