M3 Screw Terminal Block Accessories 40A Brass Tin Plated Electronic Components Parts

Name: M3 Screw Terminal Block Accessories 40A Brass Tin Plated Electronic Components Parts
Brand: SCED
Price: 0.016 USD

Brand Name : SCED

Model Number : AO-08/4J-2

Certification : CE,UL,CUL,CQC and VDE etc.

Place of Origin : Guangdong, China

MOQ : 1000 Piece/Pieces

Price : USD 0.016 Per PCS

Payment Terms : L/C, T/T

Supply Ability : 1000000 Pole/Poles per Month

Delivery Time : 5-20 Working Days

Packaging Details : Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.

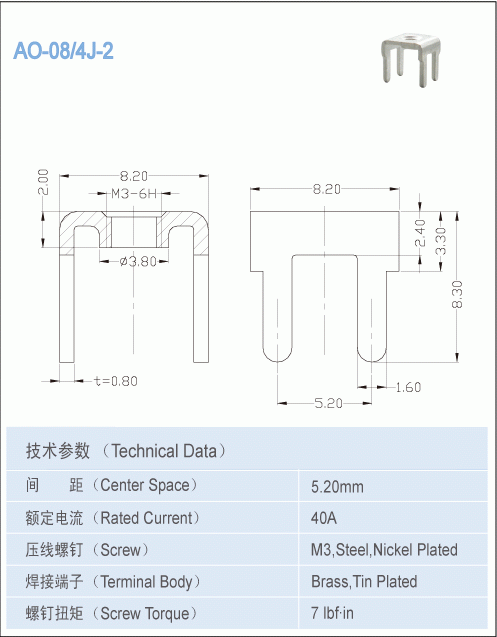

Rated Current : 40A

Center Space : 5.2*7.4mm

Terminal Body : Brass

Screw Material : Steel

Screw : M3

Screw Torque : 7 lbf.in

Contact Resistance : Less than 8mΩ

Insulation Resistance : Above DC500V, 500MΩ

Contact Now

M3 Screw Terminal Block Accessories 40A Brass Tin Plated Electrical Components

Detailed product Description:

Terminal Accessories, PCB terminal, Electrical components

Metal terminal connect accessories can be worked as a terminal block after mount on PCB, some simple metal part components will works as the jumper and other assistant functions. The materials are high-quality brass, copper, and plated tin, nickel, zinc, etc.

Applications:

Pins and simple terminal connect parts are accessories component. And normally they're widely used in PCB, Security, Communication, Medical Equipmemts, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation and so on.

Competitive Advantage:

More then 10 years of experience in China
Stable good quality
Competitive price
More than 1000 models for selection

M3 Screw Terminal Block Accessories 40A Brass Tin Plated Electronic Components Parts
