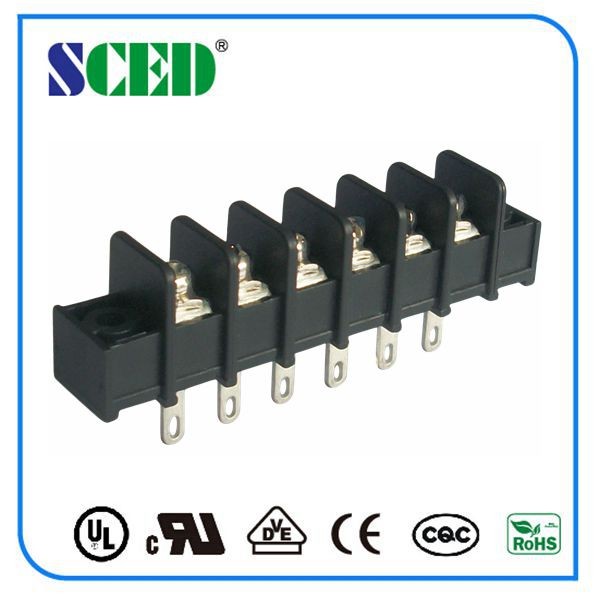

Flange Barrier Terminal Block Black Spacing Center 7.62mm Brass

Name: Flange Barrier Terminal Block Black Spacing Center 762mm Brass
Brand: SCED
Price: 0.058 USD

Brand Name : SCED

Model Number : TB762-01F-D3

Certification : CE,UL,CUL,CQC,VDE etc.

Place of Origin : Guangdong,China

MOQ : 500 Piece/Pieces

Price : USD 0.058-0.106 Per Pole

Payment Terms : T/T, L/C

Supply Ability : 1000000 Pole/Poles per Month

Delivery Time : 5-20 days

Packaging Details : Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.

Plastic : PBT

Terminal : Brass

Color : Black

Center Spacing : 7.62mm

Current : 15A

Voltage : 300V

Poles : 2-22 poles

Contact Resistance : Less than 8mΩ

Rated Surge Voltage : No abnormal within 1 minute

Inflammability Class : UL94, V-0

Contact Now

Flange Barrier Terminal Block Black Spacing Center 7.62mm Brass

Detailed product Description:

Pitch 7.62mm, 300V 15A, 2P-22P, Barrier Terminal Blocks, Power Terminal Blocks

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Level; □Double levels; □Triple levels

Standard color: Black. Other colors also available.

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

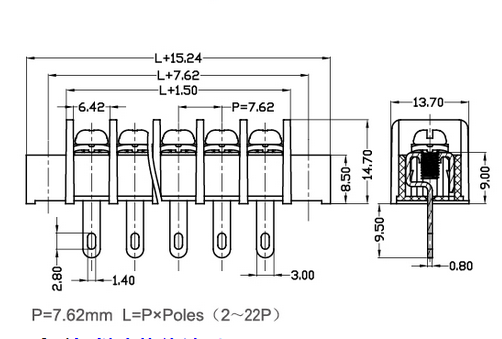

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300/15		300/10
Wire Range AWG	14-22		14-22
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	250 / 24	320 / 24	400 / 24
Rated Surge Voltage KV	4	4	4
Rated Connecting Capacity mm²	2.5
Material
Insulation Material / Inflammability Class	PBT / UL94, V-0
Terminal / Plating	Brass / Tin Plated
Screw / Plating	Steel / Nickel Plated
Other Data
PCB Hole Diameter mm	1.2x3.4
Stripping Length mm	7-8
Screw / Torque / lbf.in	M 3 / 5-7

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand.
