2-24 Poles Spacing 9.52mm Barrier Terminal Block 300V 20A Right Angle Wire Inlet

Name: 224 Poles Spacing 952mm Barrier Terminal Block 300V 20A Right Angle Wire Inlet
Brand: SCED
Price: 0.048 USD

Brand Name : SCED

Model Number : TB952-02

Certification : UL, CE

Place of Origin : Guangdong,China

MOQ : 500 Piece/Pieces

Price : USD 0.048-0.088 PER Pole

Payment Terms : L/C, T/T

Supply Ability : 1000000 Pole/Poles per Month

Delivery Time : 5-20 working days

Packaging Details : Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm

Pitch : 9.52mm

Wire Inlet : Right angle

Voltage : 300V

Current : 20A

Color : Black

Plastic : PBT

Metal Parts : Brass

Rated Surge Voltage : No abnormal within 1 minute

Inflammability Class : UL94, V-0

Insulation Resistance : Above DC500V, 500MΩ

Contact Now

Spacing 9.52mm Barrier Terminal Block 300V 20A 2-24 Poles Right Angle Wire Inlet

Detailed product Description:

Pitch 9.525mm, 300V 20A, 2P-24P, Barrier Terminal Blocks, Power Terminal Blocks

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Level; □Double levels; □Triple levels

Standard color: Black. Other colors also available.

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

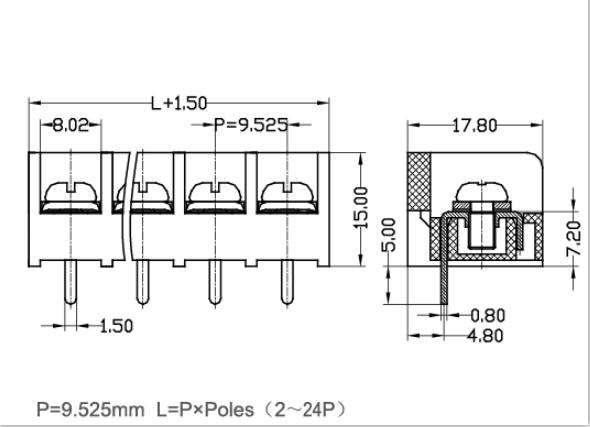

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300 / 20		300 / 10
Wire Range AWG	12-22		12-22
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	500 / 32	630 / 32	800 / 32
Rated Surge Voltage KV	6	6	6
Rated Connecting Capacity mm²	4
Material
Insulation Material / Inflammability Class	PBT / UL94, V-0
Terminal / Plating	Brass /Tin Plated
Screw / Plating	Steel / Nickel Plated
Other Data
PCB Hole Diameter mm	φ2.1
Stripping Length mm	8-9
Screw / Torque / lbf.in	M 3.5 / 7-10

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
