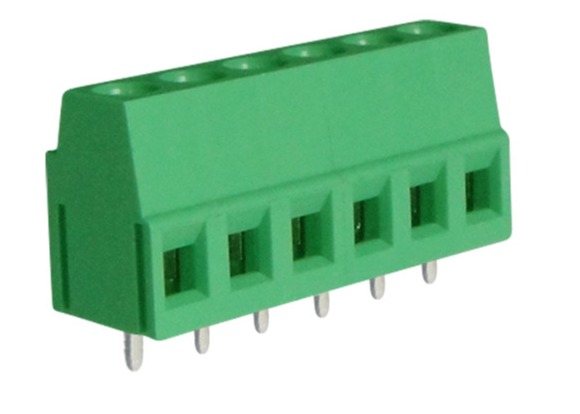

Pitch 5.08mm 300V 10A PCB Screw Terminal Block Euro Type Raising Series

Name: Pitch 508mm 300V 10A PCB Screw Terminal Block Euro Type Raising Series
Brand: SCED
Price: 0.042 USD

China Pitch 5.08mm 300V 10A PCB Screw Terminal Block Euro Type Raising Series wholesale

Brand Name : SCED

Model Number : TJ508-14

Certification : CE,UL

Place of Origin : Guangdong, China

MOQ : 1000 Piece/Pieces

Price : USD 0.042-0.082

Payment Terms : L/C, T/T

Supply Ability : 1000000 Pole/Poles per Month

Delivery Time : 5-20 Working Days

Packaging Details : Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.

Screw : M3

Pitch : 5.08mm

Color : Green

Current : 10A

Voltage : 300V

Poles : 2-24 poles

Clamp Cage : Brass

Rated Surge Voltage : No abnormal within 1 minute

Insulation Resistance : Above DC500V, 500MΩ

Contact Resistance : Less than 8mΩ

Contact Now

Detailed product Description:

Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series

Wire Inlet: ■Right angle wire inlet

Decks: ■Single Deck

Standard color: Green.

Other colors also available, please refer to below How to Order and select the color you want.

Pitch 5.08mm 300V 10A PCB Screw Terminal Block Euro Type Raising Series

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300/10		300/10
Wire Range AWG	12-26		12-26
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	250 / 10	400 / 10	630 / 10
Rated Surge Voltage KV	4	4	4
Rated Connecting Capacity mm²	2.5
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Clamp Cage / Plating	Brass / Nickel Plated
Terminal / Plating	Brass / Tin Plated
Screw / Plating	Steel / Zinc Plated
Other Data
PCB Hole Diameter mm	φ1.4
Stripping Length mm	6-7
Screw / Torque / lbf.in	M3 / 4.4-5.3

Applications:

Normally our products will be used in a lot of fileds and industries, for example:

Medical Equipment, PCB, Military, Switch, Communication, Automation, Power Supply, Industrial Control, Security, Frequency Converters and Server Site and so on.

Competitive Advantage:

OEM an
d ODM service
More than 1000 models for selection
High quality but competitive price
Good after-sales service
