600V Feed Through Terminal Block 50A Pitch 12.00mm PA66 Copper

Name: 600V Feed Through Terminal Block 50A Pitch 1200mm PA66 Copper
Brand: SCED
Price: 0.235 USD

Brand Name : SCED

Model Number : TR-5N-01

Certification : CE,UL,CUL,CQC,VDE etc.

Place of Origin : Guangdong,China

MOQ : 500 Piece/Pieces

Price : USD 0.235-0.268 per pole

Payment Terms : T/T, L/C

Supply Ability : 1000000 Pole/Poles per Month

Delivery Time : 5-20 days

Packaging Details : Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.

Conduction Board : Copper

Color : Grey

Voltage : 600V

Current : 30A

Clamp Cage : Brass

Screw : Steel

Pitch : 12mm

Insulation Material : PA66

Inflammability : UL94 V0

Stripping Length : 6-7

Contact Now

600V Feed Through Terminal Block 50A Pitch 12.00mm PA66 Copper

Detailed product Description:

Pitch 12.00mm, 600V 30A, 2-16P, Feed-Through Terminal Blocks

■ Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■ Single Level; □Double levels; □Triple levels

Standard color: Grey. Other colors also available.

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

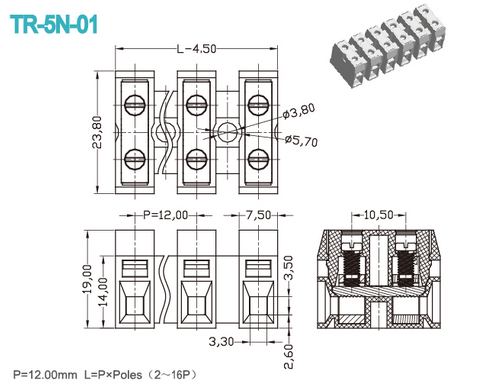

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	600 / 30	600 / 30
Wire Range AWG	10-30	10-30
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	800 / 41	1000 / 41	1000 / 41
Rated Surge Voltage KV	8	8	8
Rated Connecting Capacity mm²	6
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Conduction Board / Plating	Copper / Nickel Plated
Clamp Cage / Plating	Brass / Nickel Plated
Screw / Plating	Steel / Zinc Plated
Other Data
Stripping Length mm	6-7
Screw / Torque / lbf.in	M3 / 4.4-5.3

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
