Barrier Type Terminal Block For Power Supply M6 Screw Strip Terminals Connectors
Quick Details:
Pitch: 20.00mm
Poles: 2P-12P
Voltage/ Current: 600V/75A
Wire range: 26-4 AWG
Spec.
1. Multiple Pitch: 7.62mm,8.25mm,8.70mm,9.525mm,10.00mm,11.00mm,
13.00mm,13.50mm,14.50mm,20.00mm,21.00mm
2. With or without cover, one or two rows, from one level to three levels, etc.
3. Materials: Plastic housing is PBT(UL94 V-0)
4. Operating temperature: -40℃~+120℃
5. Clamp cage and terminal is high quality brass or copper screw is high-quality steel

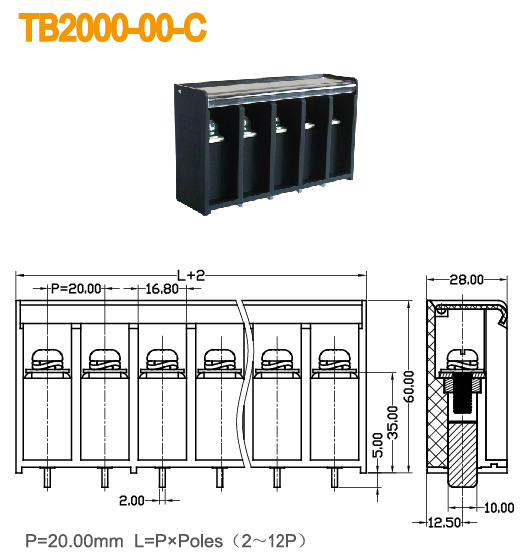

Parameter and Drawing Specifications:
| UL Technical Data | B | C | D |
| Rated Voltage / Current V/A | 600 / 75 | 600 / 75 | 600 / 5 |
| Wire Range AWG | 26-4 | 26-4 | 26-4 |
| IEC Technical Data | |
| Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage / Current V/A | 1000 / 75 | 1000 / 75 | 1000 / 75 |
| Rated Surge Voltage KV | 12 | 12 | 12 |
| Rated Connecting Capacity mm2 | 16 |
| Material | |
| Insulation Material / Inflammability Class | PBT / UL94, V-0 |
| Terminal / Plating | Brass /Tin Plated |
| Screw / Plating | Steel / Nickel Plated |
| Other Data | |
| PCB Hole Diameter mm | 2.4x10.4 |
| Stripping Length mm | 16-18 |
| Screw / Torque / lbf.in | M6 / 18-22 |
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:
1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand
