3.50mm Spacing Spring Terminal Blocks LCP Material 16-22 AWG With Push Button

Name: 350mm Spacing Spring Terminal Blocks LCP Material 1622 AWG With Push Button
Brand: SCED
Price: 1 USD

Brand Name : SCED

Model Number : TJ381-12V

Certification : UL, CE

Place of Origin : Shenzhen, China

MOQ : 500pcs

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Packaging Details : Standard Export Carton

Item : spring terminal block

Rate Voltage : 300V

Rate Current : 10A

Poles : 2-24 Poles

Color : Black & white

Wire Range : 16-22AWG

Material : LCP

Type : spring clamp

Contact Now

3.50mm Spacing Spring Terminal Blocks LCP Material 16-22 AWG With Push Button

Quick Detail:

Rate Voltage: 300V
Rate Current: 10A
Poles: 2-24 Poles
Wire Range:16-22AWG

Advantage:

1. With push button

2. Spring type

3. LCP Material

4.Spring: Stainless Steel

Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300/10
Wire Range AWG	16-22
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	160 / 10	250 / 10	400 / 10
Rated Surge Voltage KV	2.5	2.5	2.5
Rated Connecting Capacity mm²	1.5
Material
Insulation Material / Inflammability Class	LCP / UL94, V-0
Spring / Plating	Stainless Steel / -
Terminal / Plating	Phosphor Bronze / Tin Plated
Other Data
PCB Hole Diameter mm	φ1.1
Stripping Length mm	8-9

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand

Applications:

1. PCB, Frequency Converters, Server Site,

2. Switch, Power Supply, Electric Lighting, Industry Control, Automation,

3. Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

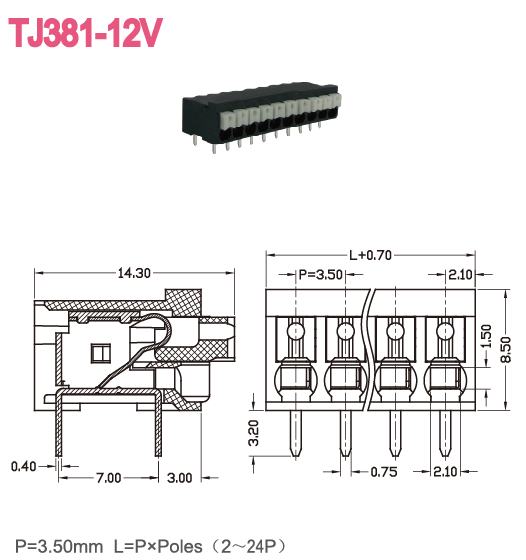

Drawing

3.50mm Spacing Spring Terminal Blocks LCP Material 16-22 AWG With Push Button
