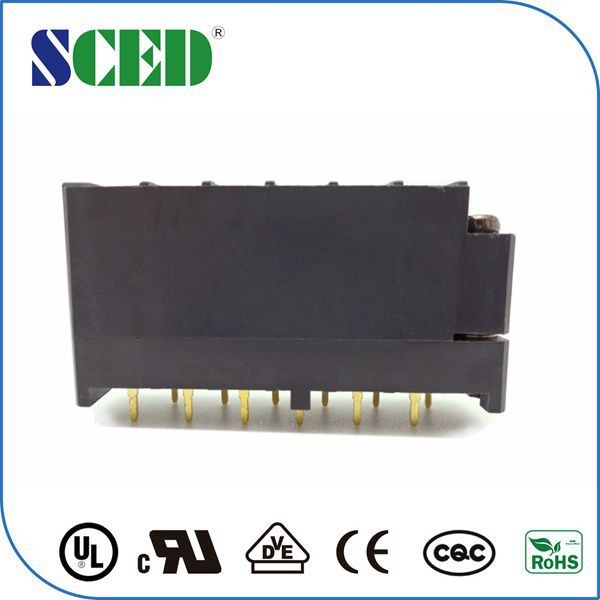

Connector 7.62mm Pcb Terminal Blocks Power Supply Two Level Screw Clamp

Name: Connector 762mm Pcb Terminal Blocks Power Supply Two Level Screw Clamp
Brand: SCED
Price: 1 USD

China Connector 7.62mm Pcb Terminal Blocks Power Supply Two Level Screw Clamp wholesale

Brand Name : SCED

Model Number : TB762-07

Certification : UL, CE

Place of Origin : China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 7-20 working days

Packaging Details : Standard Export Carton

Levels : Double Levels

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Number of Contacts : 2P-22P

Pitch : 7.62mm

Rated Current : 15A

Type : Barrier Terminal Block,Power terminal blocks, Electrical terminal Blocks

Contact Now

Connector 7.62mm Barrier Terminal Block Power Supply Two Level Screw Clamp

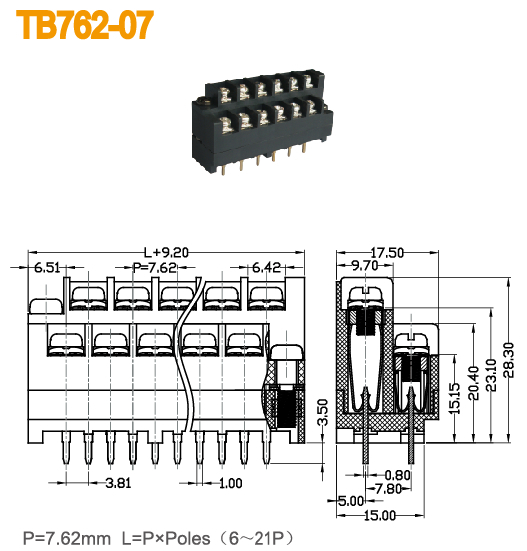

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300 / 15		300 / 10
Wire Range AWG	14-22		14-22
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	250 / 24	320 / 24	400 / 24
Rated Surge Voltage KV	4	4	4
Rated Connecting Capacity mm²	2.5
Material
Insulation Material / Inflammability Class	PBT / UL94, V-0
Terminal / Plating	Phosphor Bronze/ Gold Plated
Screw / Plating	Steel / Nickel Plated
Other Data
PCB Hole Diameter mm	φ1.5
Stripping Length mm	7-8
Screw / Torque / lbf.in	M 3 / 5-7

Connector 7.62mm Pcb Terminal Blocks Power Supply Two Level Screw Clamp

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

Connector 7.62mm Pcb Terminal Blocks Power Supply Two Level Screw Clamp

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
