Hot sale Plastic Strips PCB Screw Terminal Block Right Angle Wire Connection 300V

Name: Hot sale Plastic Strips PCB Screw Terminal Block Right Angle Wire Connection 300V
Brand: SCED
Price: 1 USD

China Hot sale Plastic Strips PCB Screw Terminal Block Right Angle Wire Connection 300V wholesale

Brand Name : SCED

Model Number : TJ381-02

Certification : UL, CE

Place of Origin : Shenzhen, China

MOQ : 500-1000

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1.2KK poles each monthly

Delivery Time : 7-20 working days

Packaging Details : Standard Export Carton

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Color : Green

Number of Contacts : 2P-28P

Pitch : 3.81mm

Rated Current : 10A

Rated Voltage : 300V

Wire Range : 16-24 AWG

Material housing : PA66

Contact Now

Plastic Strips PCB Screw Terminal Block Right Angle Wire Connection 3.81mm 300V

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color:Green. Other colors also available, please refer to below How to Order and select the color you

want.

Tag:
PCB mount terminal blocks, PCB screw terminal blocks, Electrical terminal Blocks, Euro raising terminal
blocks, terminal block manufacturer

How to order:
Hot sale Plastic Strips PCB Screw Terminal Block Right Angle Wire Connection 300V

Applications:

PCB, Frequency Converters, Server Site, Switch,
Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication,
Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300 / 10
Wire Range AWG	16-24
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	160 / 10	200 / 10	400 / 10
Rated Surge Voltage KV	2.5	2.5	2.5
Rated Connecting Capacity mm²	1.0
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Clamp Cage / Plating	Brass / Nickel Plated
Terminal / Plating	Brass / Tin Plated
Screw / Plating	Steel / Zinc Plated
Other Data
PCB Hole Diameter mm	φ1.3
Stripping Length mm	4-5
Screw / Torque / lbf.in	M2 / 1.8-2.0

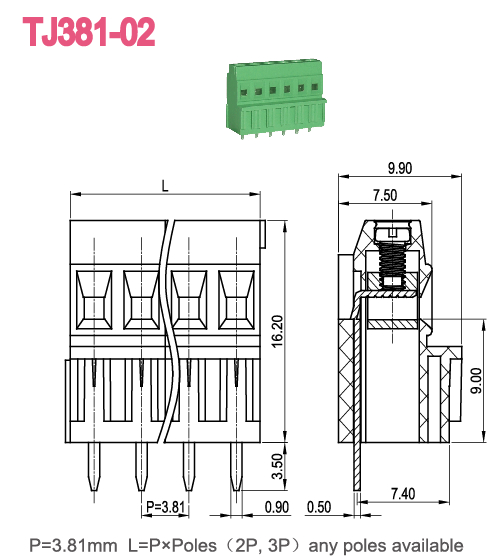

Drawing:
Hot sale Plastic Strips PCB Screw Terminal Block Right Angle Wire Connection 300V

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand

Product Tags:

screw type terminal block

screw connection terminal block
