Power Distribution Feed Through Terminal Blocks AWG 22-4 Mount Terminal Connector

Name: Power Distribution Feed Through Terminal Blocks AWG 224 Mount Terminal Connector
Brand: SCED
Price: 1 USD

China Power Distribution Feed Through Terminal Blocks AWG 22-4 Mount Terminal Connector wholesale

Brand Name : SCED

Model Number : TR-16N

Certification : UL, CE

Place of Origin : Shenzhen, China

MOQ : 500

Price : Get latest price

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Delivery Time : 7-20 working days

Packaging Details : Standard Export Carton

Wire Inlet : Right angle wire inlet

Terminal Width : 12.2mm

Type : Rail Mounted Terminal Blocks,Barrier terminal blocks, Power terminal blocks

Wire Range : 22-4

Rated Voltage : 600V

Rated Current : 85A

Color : Grey

Applications : Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev

Contact Now

Power Distribution Feed Through Terminal Blocks AWG 22-4 Mount Terminal Connector

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

width 12.2mm AWG 22-4 Grey Din Rail Terminal Blocks for Electric Lighting 600V 85A, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

Detailed product Description:

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Grey . Other colors also available, please refer to below How to Order and select the color you want.
Din rail terminal blocks, rail terminal connectors, Rail-mounted Terminal Blocks, Compact Din Rail Mount Terminal Blocks

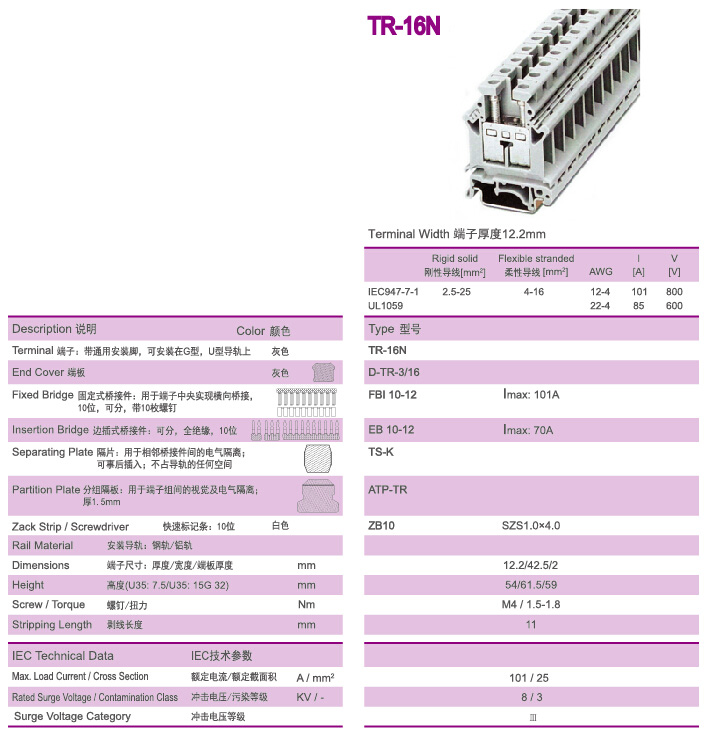

How to order:
Power Distribution Feed Through Terminal Blocks AWG 22-4 Mount Terminal Connector

Parameter a

Description Color	Type
Terminal Grey	TR-16N
End Cover Grey	D-TR-3/16
Fixed Bridge	FBI 10-12 Imax: 101A
Insertion Bridge	EB 10-12 Imax: 70A
Separating Plate	TS-K
Partition Plate	ATP-TR
Zack Strip White	ZB10
Screwdriver	SZS 1.0×4.0
Rail Material	aluminum
Dimensions mm	12.2/42.5/2.0
Height (U35: 7.5/U35: 15G 32) mm	54/61.5/59
Screw / Torque Nm	M4 / 1.5-1.8
Stripping Length mm	11
IEC Technical Data
Max. Load Current / Cross Section A / mm²	101 / 25
Rated Surge Voltage / Contamination Class KV / -	8 / 3
Surge Voltage Category	Ⅲ

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand

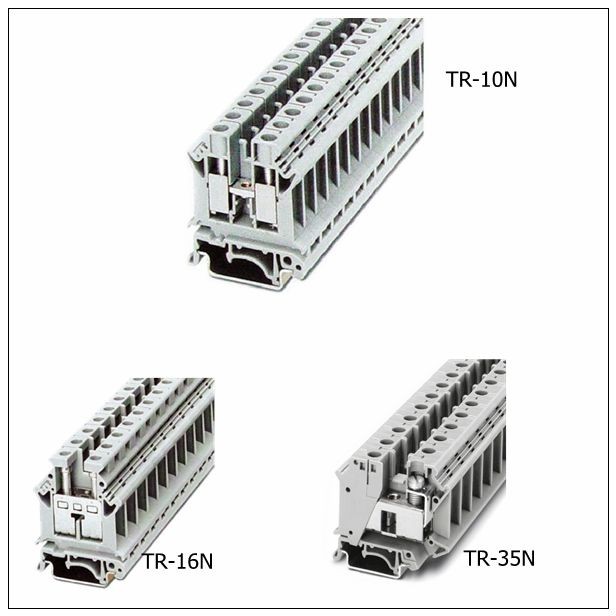

Drawing Photo
Power Distribution Feed Through Terminal Blocks AWG 22-4 Mount Terminal Connector
