300V 18A Male Plug-in Terminal Blocks / Pitch 5.08mm PCB Terminal Block Connectors

SCED ELECTRONICS CO., LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

300V 18A Male Plug-in Terminal Blocks / Pitch 5.08mm PCB Terminal Block Connectors

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TP508H-04

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Color : Green

Number of Contacts : Any Poles Available

Pitch : 5.08mm

Rated Current : 18A

Rated Voltage : 300V

Type : Plug In Terminal Blocks,Pluggable Terminal Blocks, Plug-in Terminal Blocks

Wire Inlet : 45 degree wire inlet

Contact Now

300V 18A Male Plug-in Terminal Blocks / Pitch 5.08mm PCB Terminal Block Connectors

□Right angle wire inlet; □Vertical wire inlet; ■45 degree wire inlet
■Single Level; □Double Levels; □Triple Levels

This male header match with female plugs’ series: TP508P-00, TP508P-02, TP508P-03, TP508P-04, TP508P-05, TP508P-07

Standard color: Green. Other colors also available, please refer to below How to Order and select the color
you want.
Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors

How to order:
300V 18A Male Plug-in Terminal Blocks / Pitch 5.08mm PCB Terminal Block Connectors



Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..

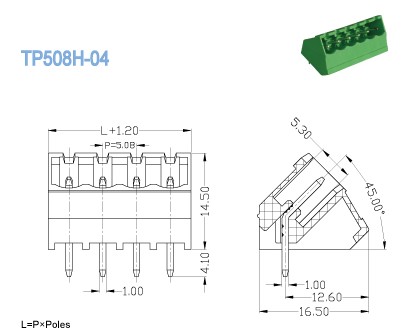

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300 / 18

Wire Range AWG

IEC Technical Data

Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current V/A

250 / 18

400 / 18

500 / 18

Rated Surge Voltage KV

4

4

4

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Other Data

PCB Hole Diameter mm

φ1.4

PinDimension mm

1.0 x 1.0



300V 18A Male Plug-in Terminal Blocks / Pitch 5.08mm PCB Terminal Block Connectors



Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
