6A 125V Pitch 2.54mm Screw Terminal Block PCB 2 Pin - 22 Pin For Power Supply

Name: 6A 125V Pitch 254mm Screw Terminal Block PCB 2 Pin 22 Pin For Power Supply
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TJ254-02

MOQ : 1000

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Color : Green

Number of Contacts : 2P-22P

Pitch : 2.54mm

Rated Current : 6A

Rated Voltage : 125V

Type : PCB Terminal Block,PCB mount terminal blocks, PCB screw terminal blocks

Wire Range : 16-30

Contact Now

6A 125V Pitch 2.54mm Screw Terminal Block PCB 2 Pin - 22 Pin For Power Supply

Competitive Advantage:

1. Stable good quality
2. Competitive price
3. Quickly response
4. Full range products for selection
5. Flexible to design the exact part per customers’ demand

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Deck; □Double decks; □Triple decks
Standard color: Green. Other colors also available, please refer to below How to Order and select the color
you want.
PCB mount terminal blocks, PCB screw terminal blocks, Electrical terminal Blocks, Euro raising terminal
blocks, terminal block manufacturer

How to order:

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..

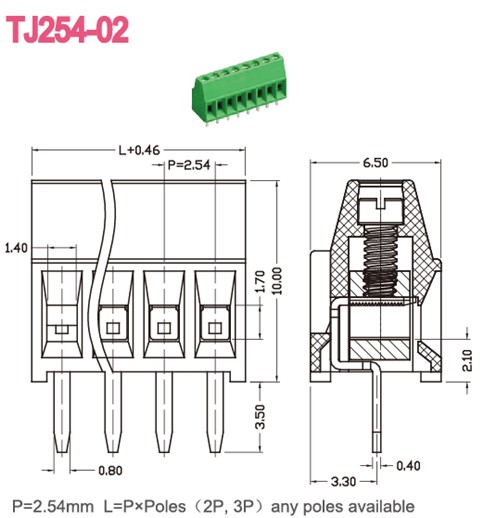

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	125 / 6
Wire Range AWG	16-30
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	63 / 6	160 / 6	320 / 6
Rated Surge Voltage KV	1.5	1.5	2.5
Rated Connecting Capacity mm²	0.5
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Clamp Cage / Plating	Brass / Nickel Plated
Terminal / Plating	Brass / Tin Plated
Screw / Plating	Steel / Nickel Plated
Other Data
PCB Hole Diameter mm	φ1.1
Stripping Length mm	4-5
Screw / Torque / lbf.in	M1.6 / 1.0-1.3
