60A Electrical High Current Terminal Block For Industry Control Pitch 19.0mm

Name: 60A Electrical High Current Terminal Block For Industry Control Pitch 190mm
Brand: SCED
Price: 1 USD

China 60A Electrical High Current Terminal Block For Industry Control Pitch 19.0mm wholesale

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TR60-01-BCM0-N5

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Applications : PCB,Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Color : Black

Number of Contacts : Any Poles Available

Pitch : 19.00mm

Rated Current : 60A

Rated Voltage : 600V

Type : High Current Barrier Terminal Block, Power terminal blocks, Electrical terminal Blocks

Wire Range : 4-20

Contact Now

60A Electrical High Current Terminal Block For Industry Control Pitch 19.0mm

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Level; □Double levels; □Triple levels

Standard color: Black. Other colors also available, please refer to below How to Order and select the color

you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers

How to order:

60A Electrical High Current Terminal Block For Industry Control Pitch 19.0mm

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, c,

Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,

Elevator, etc..

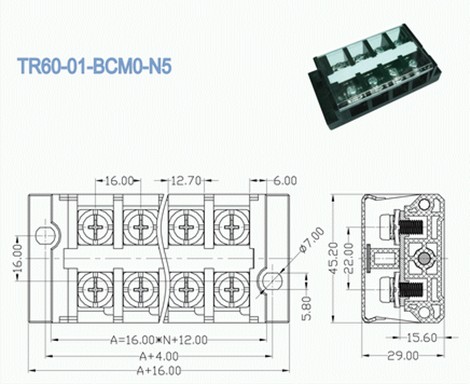

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	600 / 60	600 / 60
Wire Range AWG	4-20	4-20
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	800 / 60	1000 / 60	1000 / 60
Rated Surge Voltage KV	8	8	8
Rated Connecting Capacity mm²	14
Material
Insulation Material / Inflammability Class	PC / UL94, V-0
Terminal / Plating	Brass / Nickel Plated
Screw / Plating	Steel / Zinc Plated
Other Data
Stripping Length mm	12-15
Screw / Torque / lbf.in	M5 / 14-18

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
