600V 40A Single Level Barrier Terminal Block Pitch 14.5mm , 4P - 14P

Name: 600V 40A Single Level Barrier Terminal Block Pitch 145mm 4P 14P
Brand: SCED
Price: 1 USD

China 600V 40A Single Level Barrier Terminal Block Pitch 14.5mm , 4P - 14P wholesale

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TB1450-00-A3-C

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Type : Barrier Terminal Block,Power terminal blocks, Electrical terminal Blocks

Pitch : 14.5mm

Number Of Contacts : 4P-14P

Wire Range : 22-8

Rated Voltage : 600V

Rated Current : 40A

Color : Black

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Levels : Single Level

Wire Inlet : Right angle wire inlet

Contact Now

600V 40A Single Level Barrier Terminal Block Pitch 14.5mm , 4P - 14P

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Level; □Double levels; □Triple levels

Standard color: Black. Other colors also available, please refer to below How to Order and select the color

you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers

How to order:

600V 40A Single Level Barrier Terminal Block Pitch 14.5mm , 4P - 14P

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,

Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,

Elevator, etc..

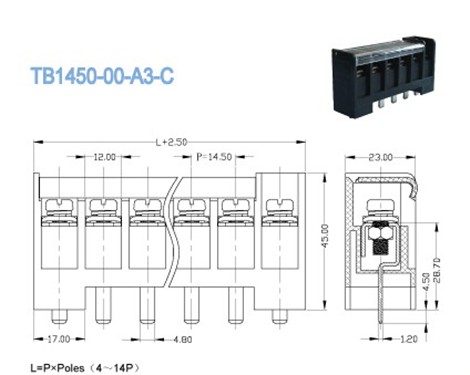

Parameter and Drawing Specifications:

UL Technical Data	B C D
Rated Voltage / Current V/A	600/ 40 600/ 40 600 / 5
Wire Range AWG	22-8 22-8
IEC Technical Data
Overvoltage Category	Ⅲ Ⅲ Ⅱ
Contamination Class	3 2 2
Rated Voltage / Current V/A	800 /40 1000 / 40 1000 / 40
Rated Surge Voltage KV	8 8 8
Rated Connecting Capacity mm2	6
Material
Insulation Material / Inflammability Class	PBT / UL94, V-0
Terminal / Plating	Brass Tin / Plated
Screw / Plating	Steel / Nickel Plated
Other Data
PCB Hole Diameter mm	φ1.6-5.2
Stripping Length mm	12-15
Screw / Torque / lbf.in	M 5 / 18-20

600V 40A Single Level Barrier Terminal Block Pitch 14.5mm , 4P - 14P

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
