Pitch 11.00mm Barrier Terminal Block , 300V 15A 2P - 22P Power Terminal Blocks

Name: Pitch 1100mm Barrier Terminal Block 300V 15A 2P 22P Power Terminal Blocks
Brand: SCED
Price: 1 USD

China Pitch 11.00mm Barrier Terminal Block , 300V 15A 2P - 22P Power Terminal Blocks wholesale

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TB1100-01

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Type : Barrier Terminal Block,Power terminal blocks, Electrical terminal Blocks

Pitch : 11.00mm

Number Of Contacts : 2P-22P

Wire Range : 10-18

Rated Voltage : 300V

Rated Current : 15A

Color : Black

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Contact Now

Pitch 11.00mm Barrier Terminal Block, 300V 15A 2P - 22P Power Terminal Blocks

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..

How to order:
Pitch 11.00mm Barrier Terminal Block , 300V 15A 2P - 22P Power Terminal Blocks

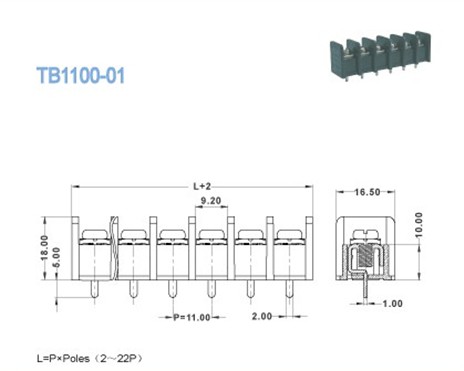

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300/30		300/10
Wire Range AWG	10-18		10-18
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	630 / 41	800 / 41	1000 / 41
Rated Surge Voltage KV	6	6	6
Rated Connecting Capacity mm²	6
Material
Insulation Material / Inflammability Class	PBT / UL94, V-0
Terminal / Plating	Brass / Tin Plated
Screw / Plating	Steel / Nickel Plated
Other Data
PCB Hole Diameter mm	φ2.6
Stripping Length mm	9-10
Screw / Torque / lbf.in	M 4 / 10-13

Pitch 11.00mm Barrier Terminal Block , 300V 15A 2P - 22P Power Terminal Blocks

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
