300V 20A Black Barrier Type Power Terminal Blocks 9.525mm Pitch OEM ODM

Name: 300V 20A Black Barrier Type Power Terminal Blocks 9525mm Pitch OEM ODM
Brand: SCED
Price: 1 USD

China 300V 20A Black Barrier Type Power Terminal Blocks 9.525mm Pitch OEM ODM wholesale

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TB952-00F-D3

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Color : Black

Number of Contacts : 2P-22P

Pitch : 9.525mm

Rated Current : 15A

Rated Voltage : 300V

Type : Barrier Terminal Block,Power terminal blocks, Electrical terminal Blocks

Wire Range : 12-22

Contact Now

300V 20A Black Barrier Type Power Terminal Blocks 9.525mm Pitch OEM ODM

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color
you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers

How to order:
300V 20A Black Barrier Type Power Terminal Blocks 9.525mm Pitch OEM ODM

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..

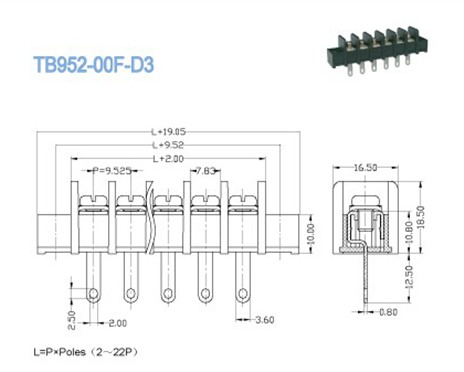

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300/20		300/10
Wire Range AWG	12-22		12-22
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	500 / 32	630 / 32	800 / 32
Rated Surge Voltage KV	6	6	6
Rated Connecting Capacity mm²	4
Material
Insulation Material / Inflammability Class	PBT / UL94, V-0
Terminal / Plating	Brass / Tin Plated
Screw / Plating	Steel / Nickel Plated
Other Data
PCB Hole Diameter mm	φ1.2x4.0
Stripping Length mm	8-9
Screw / Torque / lbf.in	M 4 / 10-13

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
