2 Pin - 32 Pin Barrier Type Terminal Block / PCB Wire Terminals UL CE

Name: 2 Pin 32 Pin Barrier Type Terminal Block PCB Wire Terminals UL CE
Brand: SCED
Price: 1 USD

China 2 Pin - 32 Pin Barrier Type Terminal Block / PCB Wire Terminals UL CE wholesale

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TB825-01

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Color : Black

Number of Contacts : 2P-32P

Pitch : 8.255mm

Rated Current : 20A

Rated Voltage : 300V

Type : Barrier Terminal Block,Power terminal blocks, Electrical terminal Blocks

Wire Range : 12-26

Levels : Single Level

Wire Inlet : Right angle wire inlet

Contact Now

2 Pin - 32 Pin Barrier Type Terminal Block / PCB Wire Terminals UL CE

Standard color: Black. Other colors also available, please refer to below How to Order and select the color

you want.

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Level; □Double levels; □Triple levels

How to order:

2 Pin - 32 Pin Barrier Type Terminal Block / PCB Wire Terminals UL CE

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,

Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,

Elevator, etc..

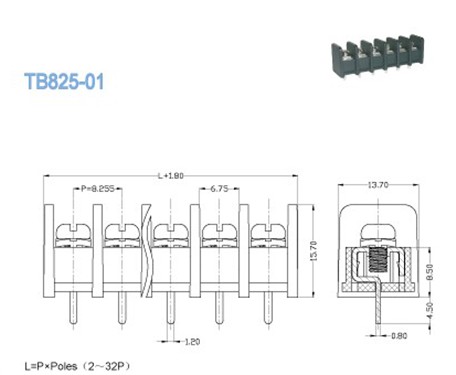

Parameter and Drawing Specifications:

UL Technical Data	B C D
Rated Voltage / Current V/A	300 / 20 300 / 10
Wire Range AWG	12-26 12-26
IEC Technical Data
Overvoltage Category	Ⅲ Ⅲ Ⅱ
Contamination Class	3 2 2
Rated Voltage / Current V/A	320 / 32 400 / 32 630 / 32
Rated Surge Voltage KV	4 4 4
Rated Connecting Capacity mm2	4
Material
Insulation Material / Inflammability Class	PBT / UL94, V-0
Terminal / Plating	Brass Tin / Plated
Screw / Plating	Steel / Nickel Plated
Other Data
PCB Hole Diameter mm	φ1.8
Stripping Length mm	6-7
Screw / Torque / lbf.in	M 3/ 5-7

2 Pin - 32 Pin Barrier Type Terminal Block / PCB Wire Terminals UL CE

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
