600V 60A Rail Mounted Terminal Block , 14.00mm Electrical Terminal Blocks 4 - 20 AWG

Name: 600V 60A Rail Mounted Terminal Block 1400mm Electrical Terminal Blocks 4 20 AWG
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TR60-01-FaM0-N7

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Type : Rail Mounted Terminal Blocks, Electrical terminal Blocks, Terminal block connectors

Pitch : 14.00mm

Number Of Contacts : Any Poles Available

Wire Range : 4-20

Rated Voltage : 600V

Rated Current : 60A

Color : Black

Applications : Power Supply, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Elev

Contact Now

600V 60A Rail Mounted Terminal Block, 14.00mm Electrical Terminal Blocks 4-20 AWG, any pole available,

High Current Terminal connectors
■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal block connectors

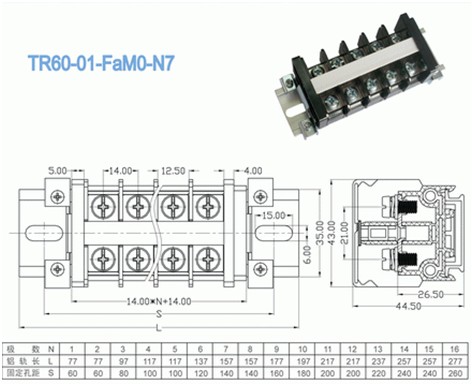

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	600 / 60	600 / 60
Wire Range AWG	4-20	4-20
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	800 /60	1000 / 60	1000 / 60
Rated Surge Voltage KV	8	8	8
Rated Connecting Capacity mm²	14
Material
Insulation Material / Inflammability Class	PC / UL94, V-0
Conduction Board/ Plating	Brass /Nickel Plated
Screw / Plating	Steel / Zinc Plated
Other Data
Stripping Length mm	12-15
Screw Torque mm	M6 / 18-22

How to order:
600V 60A Rail Mounted Terminal Block , 14.00mm Electrical Terminal Blocks 4 - 20 AWG

Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

600V 60A Rail Mounted Terminal Block , 14.00mm Electrical Terminal Blocks 4 - 20 AWG

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
