Electrical PCB Mount Terminal Block Pitch 5.0mm , 300V 10A Screw Type Terminal Blocks

Name: Electrical PCB Mount Terminal Block Pitch 50mm 300V 10A Screw Type Terminal Blocks
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TJ500-01

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Type : PCB Screw Terminal Block,Electrical terminal Blocks, Euro raising terminal blocks

Pitch : 5.00mm

Number Of Contacts : Any Poles Available

Wire Range : 12-26

Rated Voltage : 300V

Rated Current : 10A

Color : Black

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Contact Now

Electrical PCB Mount Terminal Block Pitch 5.0mm, 300V 10A Screw Type Terminal Blocks

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Deck; □Double decks; □Triple decks

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

PCB mount terminal blocks, PCB screw terminal blocks, Electrical terminal Blocks, Euro raising terminal blocks, terminal block manufacturer

How to order:

Electrical PCB Mount Terminal Block Pitch 5.0mm , 300V 10A Screw Type Terminal Blocks

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

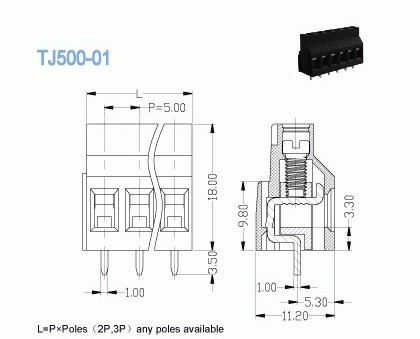

Parameter and Drawing Specifications:

UL Technical Data	B C D
Rated Voltage / Current V/A	300 / 10 300 / 10
Wire Range AWG	12-26 12-26
IEC Technical Data
Overvoltage Category	Ⅲ Ⅲ Ⅱ
Contamination Class	3 2 2
Rated Voltage / Current V/A	250 / 10 400 / 10 630 / 10
Rated Surge Voltage KV	4 4 4
Rated Connecting Capacity mm²	2.5
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Clamp Cage / Plating	Brass /Nickel Plated
Terminal / Plating	Brass / Tin Plated
Screw / Plating	Steel / Zinc Plated
Other Data
PCB Hole Diameter mm	φ1.5
Stripping Length mm	7-8
Screw / Torque / lbf.in	M3 / 4.4-5.3

Electrical PCB Mount Terminal Block Pitch 5.0mm , 300V 10A Screw Type Terminal Blocks

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
