Pitch 11.0mm Barrier Type Electrical Power Terminal Blocks 42P - 162P 300V 30A

Name: Pitch 110mm Barrier Type Electrical Power Terminal Blocks 42P 162P 300V 30A
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TB1100-02

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Type : Power Terminal Block,PCB mount terminal blocks, PCB screw terminal blocks

Pitch : 11.0mm

Number Of Contacts : 4*2P - 16*2P

Wire Range : 12-24

Rated Voltage : 300V

Rated Current : 10A

Color : Black

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Contact Now

Detailed product Description:

Pitch 11.0mm Barrier Type Electrical Power Terminal Blocks 4*2P - 16*2P 300V 30A

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
□Single Level; ■Double levels; □Triple levels
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
Perforation Terminal Blocks, Through panel terminal blocks, Feed Through connectors

How to order:

Pitch 11.0mm Barrier Type Electrical Power Terminal Blocks 4*2P - 16*2P 300V 30A

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

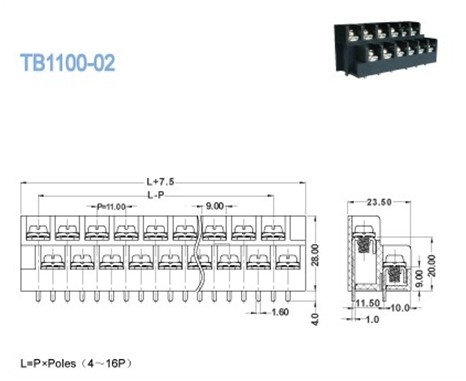

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300/30		300/10
Wire Range AWG	12-24		12-24
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	630 / 32	800 / 32	1000 / 32
Rated Surge Voltage KV	6	6	6
Rated Connecting Capacity mm²	4
Material
Insulation Material / Inflammability Class	PBT / UL94, V-0
Terminal / Plating	Brass / Tin Plated
Screw / Plating	Steel / Nickel Plated
Other Data
PCB Hole Diameter mm	φ2.3
Stripping Length mm	9-10
Screw / Torque / lbf.in	M 4 / 10-13

Pitch 11.0mm Barrier Type Electrical Power Terminal Blocks 4*2P - 16*2P 300V 30A

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
