Multi Level Barrier Terminal Block 10a Brass / Tin Plated Pitch 7.62mm

Name: Multi Level Barrier Terminal Block 10a Brass Tin Plated Pitch 762mm
Brand: SCED
Price: 1 USD

Place of Origin : China

Brand Name : SCED

Certification : UL, CE

Model Number : TB762-13V

MOQ : 500

Price : Get the Latest Price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Color : Black

Rated Current : 10A

Rated Voltage : 300V

Type : Barrier Terminal Block,Power terminal blocks, Electrical terminal Blocks

Wire Range : 14-22

Contact Now

Multi Level Barrier Terminal Block 10a Brass / Tin Plated Pitch 7.62mm

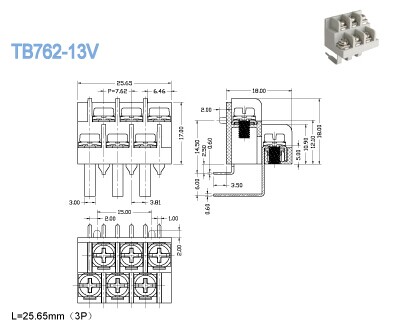

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300 / 15		300 / 10
Wire Range AWG	14-22		14-22
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	250 / 24	320 / 24	400 / 24
Rated Surge Voltage KV	4	4	4
Rated Connecting Capacity mm²	2.5
Material
Insulation Material / Inflammability Class	PBT / UL94, V-0
Terminal / Plating	Brass /Tin Plated
Screw / Plating	Steel / Nickel plated
Other Data
PCB Hole Diameter mm	φ1.6
Stripping Length mm	7-8
Screw / Torque / lbf.in	M 3 / 5-7

Multi Level Barrier Terminal Block 10a Brass / Tin Plated Pitch 7.62mm

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

Multi Level Barrier Terminal Block 10a Brass / Tin Plated Pitch 7.62mm

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand

Multi Level Barrier Terminal Block 10a Brass / Tin Plated Pitch 7.62mm

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
