30A Feed Through Terminal Block Electrical Pitch 12.00mm UL CE

Name: 30A Feed Through Terminal Block Electrical Pitch 1200mm UL CE
Brand: SCED
Price: 1 USD

Place of Origin : Shenzhen, China

Brand Name : SCED

Certification : UL, CE

Model Number : TR-5N-01

MOQ : 500

Price : Get latest price

Packaging Details : Standard Export Carton

Delivery Time : 7-20 working days

Payment Terms : T/T

Supply Ability : 1KK poles each monthly

Applications : PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control

Color : Grey

Number of Contacts : Any Poles Available

Pitch : 12.00mm

Rated Current : 30A

Rated Voltage : 600V

Type : Feed Through Terminal Block,Feed through terminal blocks, Feed through terminal connectors

Wire Range : 10-30

Contact Now

30A Feed Through Terminal Block Electrical Pitch 12.00mm UL CE

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels
Standard color: Grey. Other colors also available, please refer to below How to Order and select the color
you want.
Feed through terminal blocks, Feed through terminal connectors, Penal mount terminal block, Electrical
terminal Blocks

How to order:
30A Feed Through Terminal Block Electrical Pitch 12.00mm UL CE

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment,
Military, Elevator, etc..

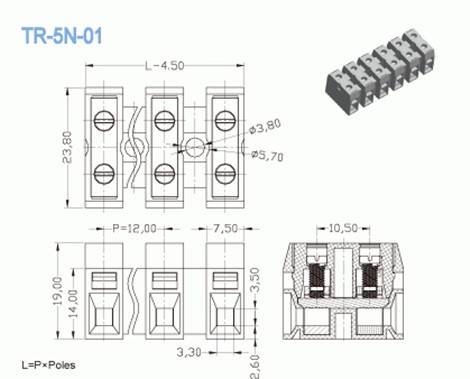

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	600 / 30	600 / 30
Wire Range AWG	10-30	10-30
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	800 / 41	1000 / 41	1000 / 41
Rated Surge Voltage KV	8	8	8
Rated Connecting Capacity mm²	6
Material
Insulation Material / Inflammability Class	PA66/ UL94, V-0
Conduction Board Plating	Copper/Nickel Plated
Clamp Cage Plating	Brass / Tin Plated
Screw / Plating	Steel / Nickel Plated
Other Data
Stripping Length mm	6-7
Screw / Torque / lbf.in	M 3 / 4.4-5.3

30A Feed Through Terminal Block Electrical Pitch 12.00mm UL CE

Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
