Brand Name : SCED
Model Number : TR300-01-4P-FaM0
Certification : UL, CE
Place of Origin : Suzhou, China
MOQ : 500
Price : Get latest price
Payment Terms : T/T
Supply Ability : 1KK poles each monthly
Delivery Time : 20-45 working days
Packaging Details : Standard Export Carton
Pitch : 45.00mm
Poles : 4P
Voltage : 600V
Current : 300A
Housing Material : PC
Conduction Board : Brass/Nickel Plated
Color : Black
Wire Range : 4-350kcmil
45.00mm Pitch Panel High Current PC Terminal Block 4P Black Power Screw Connector
Data spec.
UL Technical Data | B | C | D |
Rated Voltage / Current V/A | 600/300 | 600/300 | |
Wire Range AWG | 4-350kcmil | 4-350kcmil | |
IEC Technical Data | |||
Overvoltage Category | Ⅲ | Ⅲ | Ⅱ |
Contamination Class | 3 | 2 | 2 |
Rated Voltage / Current V/A | 800 / 300 | 1000 / 300 | 1000 / 300 |
Rated Surge Voltage KV | 8 | 8 | 8 |
Rated Connecting Capacity mm2 | 150 | ||
Material | |||
Insulation Material / Inflammability Class | PC / UL94, V-0 | ||
Conduction Board Plating | Brass/Nickel Plated | ||
Screw / Plating | Steel / Zinc Plated | ||
Other Data | |||
Stripping Length mm | 19-21 | ||
Screw / Torque / lbf.in | M10 / 50-60 |

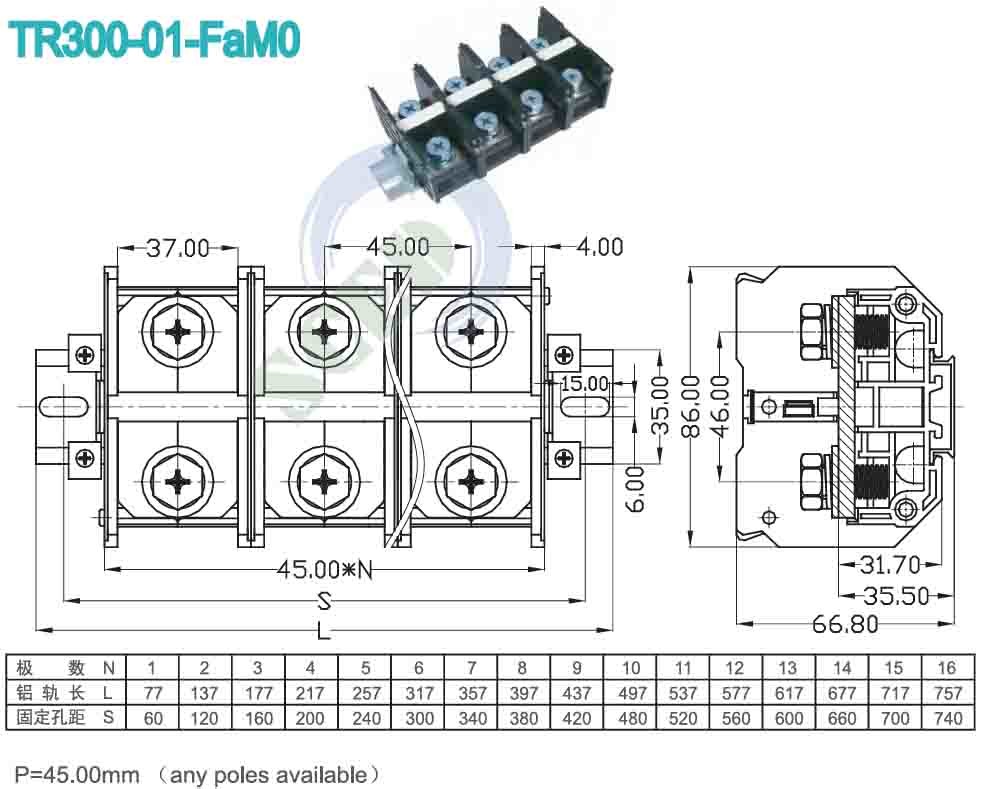

Drawing Specifications:
Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.
How to order:
Applications:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..
Competitive Advantage:
Drawing Photo
Factory Photo:
Certificates photo:
![]() |
45.00mm Pitch Panel High Current PC Terminal Block 4P Black Power Screw Connector Images |
