Pitch 5.00mm 300v PCB Terminal Block 10A 2P-24P Right Angle Wire Inlet 12-26 AWG

Name: Pitch 500mm 300v PCB Terminal Block 10A 2P24P Right Angle Wire Inlet 1226 AWG
Brand: SCED
Price: 0.054 USD

China Pitch 5.00mm 300v PCB Terminal Block 10A 2P-24P Right Angle Wire Inlet 12-26 AWG wholesale

Brand Name : SCED

Model Number : TJ500-00-14P-GN11-A3-D11-T1-M6

Certification : CE,UL,CUL,CQC,VDE etc.

Place of Origin : Suzhou, China

MOQ : 500 Piece/Pieces

Price : USD 0.054-0.108 Per Pole

Payment Terms : L/C, T/T

Supply Ability : 1000000 Pole/Poles per Month

Delivery Time : 20-45 working days

Packaging Details : Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.

Level : Single levels

Pitch : 5.00mm

Color : Green

Current : 10A

Voltage : 300V

Screw : Steel

Plastic : PA66

Rated Surge Voltage : No abnormal within 1 minute

Inflammability Class : UL94, V-0

Contact Now

Right Angle Wire Inlet Terminal Block PCB Pitch 3.81mm 300v 10A 2P - 28P

Detailed product Description:

Pitch 5.00mm, 300V 10A, 2P-24P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series

■ Right angle wire inlet

■ Single decks

Standard color: Green.

Other colors also available.

Applications:

1. PCB, Frequency Converters, Server Site, Switch, Power Supply

2. Electric Lighting, Industry Control, Automation, Rail Transportation

3. Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

How to order:

Pitch 5.00mm 300v PCB Terminal Block 10A 2P-24P Right Angle Wire Inlet 12-26 AWG

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300 / 10		300 / 10
Wire Range AWG	12-26		12-26
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	250 / 10	400 / 10	630 / 10
Rated Surge Voltage KV	4	4	4
Rated Connecting Capacity mm²	2.5
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Clamp Cage / Plating	Brass / Nickel Plated
Terminal / Plating	Brass / Tin Plated
Screw / Plating	Steel / Zinc Plated
Other Data
PCB Hole Diameter mm	φ1.4
Stripping Length mm	6-7
Screw / Torque / lbf.in	M3 / 4.4-5.3

Competitive Advantage:

1. 10 main series and more than 1000 models for selection

2. Stable good quality

3. Flexible to design the exact part per customers' demand

4. Resonable price

5. Good servide.

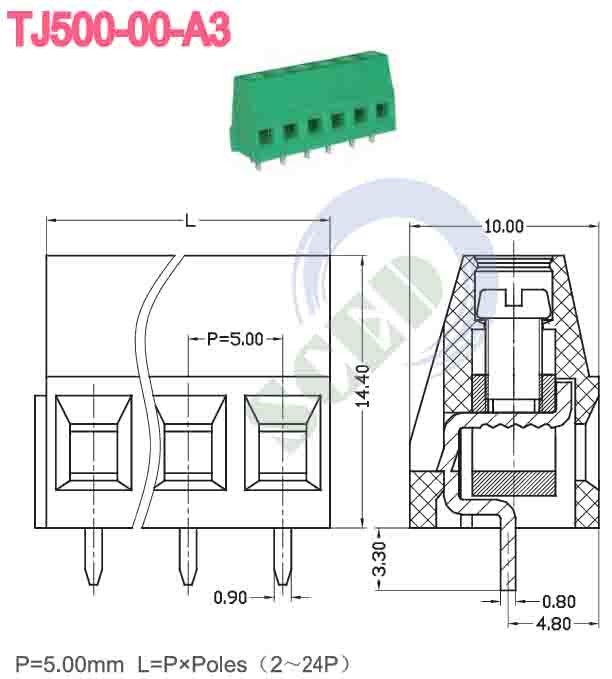

Drawing Photo

Pitch 5.00mm 300v PCB Terminal Block 10A 2P-24P Right Angle Wire Inlet 12-26 AWG
