101A 21.0mm PBT Perforation 600V Feed Through Terminal Block With Plastic Cover

Name: 101A 210mm PBT Perforation 600V Feed Through Terminal Block With Plastic Cover
Brand: SCED
Price: 1.143 USD

China 101A 21.0mm PBT Perforation 600V Feed Through Terminal Block With Plastic Cover wholesale

Brand Name : SCED

Model Number : TD100-01-C

Certification : CE,UL,CUL,CQC and VDE etc.

Place of Origin : Suzhou,China

MOQ : 1000 Piece/Pieces

Price : USD 1.143-2.286 Per Pole

Payment Terms : T/T, L/C

Supply Ability : 1000000 Pole/Poles per Month

Delivery Time : 20-45 working days

Packaging Details : Packaging Details: Standard export packing carton, or according to customers demand.

Pitch : 21mm

Current : 101A

Voltage : 600V

Screw : M6

Torque : 20-22 lbf.in

Plastic : PBT

Insulation Material : UL94-V0

Stripping Length : 11-12mm

Wire Range : 2-20 AWG

Conduction Board : Brass

Contact Now

101A 21.0mm PBT Perforation 600V Feed Through Terminal Block With Plastic Cover

Detailed product Description:

Pitch 21.0mm, 600V 101A, Any poles available, Perforation Terminal Blocks, Through Panel Terminal Connectors

■ Single Deck; □Double decks; □Triple decks

Standard color: Black.

Other colors also available, please refer to below How to Order and select the color you want.

How to order:

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	600 / 101	600 / 101	600 / 5
Wire Range AWG	2-20	2-20	2-20
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	630 / 101	1000 / 101	1000 / 101
Rated Surge Voltage KV	6	6	6
Rated Connecting Capacity mm²	25
Material
Insulation Material / Inflammability Class	PBT / UL94, V-0
Conduction Board / Plating	Brass / Nickel Plated
Screw / Plating	Steel / Zinc Plated
Other Data
Stripping Length mm	11-12
Screw / Torque / lbf.in	M6 / 20-22

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand

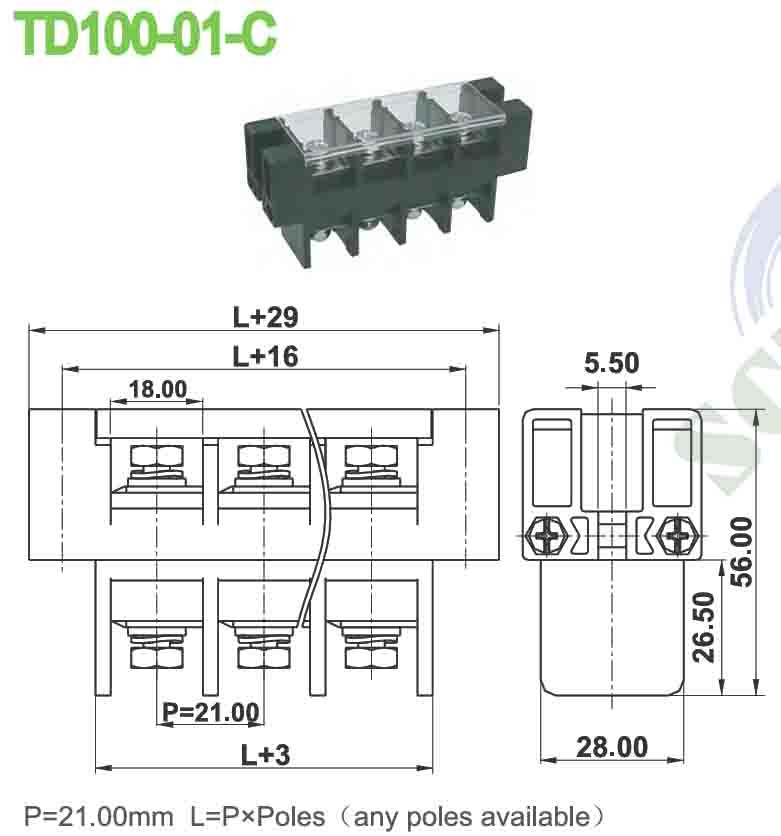

Drawing Photo
