Screwless Spring Terminal Block 2-28P Raising Structure Nickel Plated

Name: Screwless Spring Terminal Block 228P Raising Structure Nickel Plated
Brand: SCED
Price: 1 USD

Brand Name : SCED

Model Number : TJ381-05

Certification : CE,UL,CUL,CQC, VDE etc.

Place of Origin : Guangdong China

MOQ : 500 Pc/Pcs

Price : US $ 0.07 - 0.11 / Pole

Payment Terms : L/C, T/T

Supply Ability : 1000000 Pole/Poles per Month frequency converters spring terminal block

Delivery Time : 5-20 days

Packaging Details : Packaging Details: Standard export packing carton, or according to customers demand; Normally, one master carton packs 16 inner boxes inside, but some items maybe different due to the products dimensions. Standard Master Carton Dimension: 341 x 273 x 198mm

Usage : Industrial use, automatic control, power etc.

Screw : Steel

Current : 5A

Available poles : 2-28 poles

Volt : 300 V

Rated Surge Voltage : No abnormal within 1 minute

Inflammability Class : UL94, V-0

Insulation Resistance : Above DC500V, 500MΩ

Contact Resistance : Less than 8mΩ

Terminal : Brass

Contact Now

Detailed product Description:

Pitch 3.81mm, 300V 10A, 2P-28P, Spring Terminal blocks, Screwless terminals

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Deck; □Double decks; □Triple decks

Standard color: Grey. Other colors also available, please refer to below How to Order and select the color you want.

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

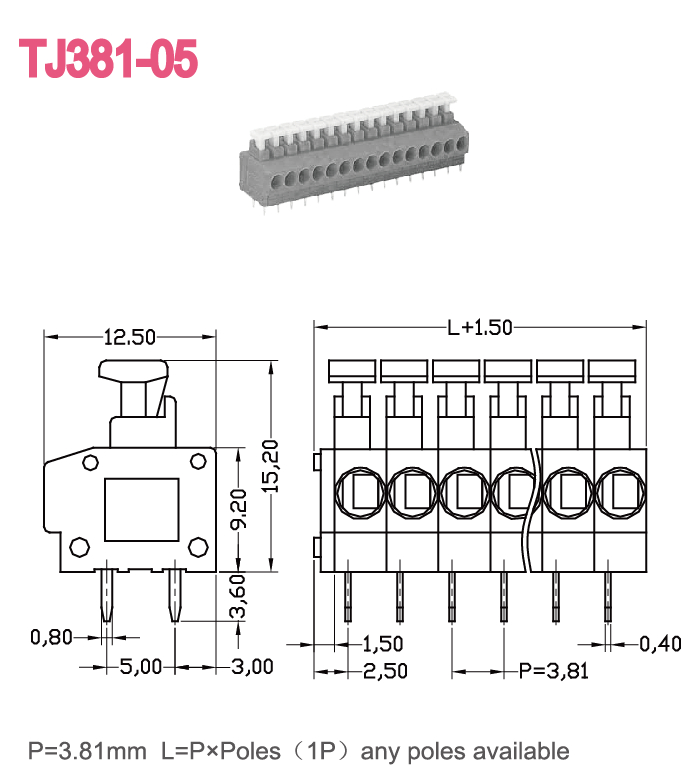

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current V/A	300/10
Wire Range AWG	16-20
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current V/A	320 / 10	320 / 10	630 / 10
Rated Surge Voltage KV	4	4	4
Rated Connecting Capacity mm²	1.5
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Spring / Plating	Stainless Steel / -
Terminal / Plating	Phosphor Bronze / Tin Plated
Other Data
PCB Hole Diameter mm	φ1.2
Stripping Length mm	9-10

Screwless Spring Terminal Block 2-28P Raising Structure Nickel Plated

Competitive Advantage:

Stable good quality
Competitive price
Quickly response
Full range products for selection
Flexible to design the exact part per customers’ demand
